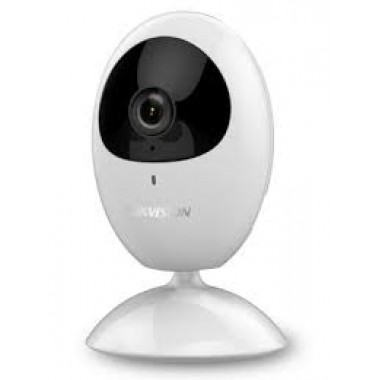

1.0 MP Network Cube Camera - DS-2CV2U01FD-IW/(16G-T/32G-T/64G-T)

Up to 1.0 megapixel high resolution

Two video streams

2.8mm fixed lens

Digital Wide Dynamic Range

3D Digital Noise Reduction

Build-in microphone and speaker, support two-way audio

Support on-board storage, up to 128GB

Up to 10 m IR range

Built-in Wi-Fi

DC 5V ± 15 %, micro USB interface

Mobile Monitoring via Hik-Connect or IVMS-4500

Camera :

Image Sensor : 0.63cm(1/4”) Progressive Scan CMOS

Min. Illumination : 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Speed : 1/3 s to 1/100,000 s

Lens : 2.8mm, horizontal field of view 92°

Lens Mount : M12

Day &Night : IR cut filter with auto switch

DNR : 3D DNR

Wide Dynamic Range : Digital WDR

Compression Standard :

Video Compression : Main stream: H.264 Sub stream: H.264/MJPEG

H.264 Type : Baseline Profile/Main Profile

Video Bit Rate : 32 Kbps – 8 Mbps

Audio Bit Rate : G.711/G.722.1/G.726/MP2L2/PCM

Audio Compression : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-64Kbps(MP2L2)/PCM

Image :

Max. Resolution : 1280 × 720

Main Stream Max. Frame Rate : 50Hz: 25fps (1280 × 720) 60Hz: 30fps (1280 × 720)

Sub Stream Max. Frame Rate : 50Hz: 25fps (704 × 576, 352 × 288, 640 × 480, 320 × 240) 60Hz: 30fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)

Image Settings : Support rotate mode, brightness, saturation, sharpness, contrast are adjustable via client software

Day/Night Switch : Support auto/scheduled

Backlight Compensation : Support, zone optional

Region of Interest : Support 1 fixed region for each stream

Network :

Network Storage : Support Micro SD/SDHC/SDXC card, up to 128 GB local storage

Detection : Motion Detection, Dynamic Analysis

Alarm Trigger : Video Tampering Alarm, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted

Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, IGMP, QoS, IPv6

Standard : ISAPI

General Function : One-key reset, Anti-flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark

Interface : Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port : On-board Storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB : Audio Interface

1 build-in microphone, 1 build-in speaker : Reset

Yes : Wi-Fi

Wireless Standards : s IEEE802.11b, 802.11g, 802.11n

Frequency Range : 2.4 GHz - 2.4835 GHz

Channel Bandwidth : 20/40MHz Support

Protocols : 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM

Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Transfer Rates : 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps

Wireless Range : 50 meters (The performance varies based on actual environment)

General :

Operating Conditions : -10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing)

Power Supply : DC 5V ± 10 %, micro USB interface

Current : Max. 0.9 A

Power Consumption : Max. 4.5W

IR Range : Up to 10 meters

Material : Plastic

Memory Card : DS-2CV2U01FD-IW: no memory card included DS-2CV2U01FD-IW/16G-T: includes a 16 GB memory card DS-2CV2U01FD-IW/32G-T: includes a 32 GB memory card DS-2CV2U01FD-IW/64G-T: includes a 64 GB memory card

Dimensions : Φ 64 × 106.9 mm (Φ 6.40cm(2.52'') ×10.69( 4.21''))

Weight (include package) : 115 g (0.25 lbs)
