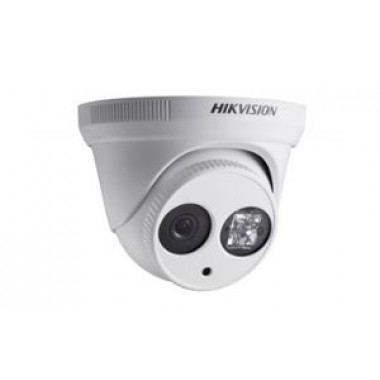

1.3 Megapixel CMOS ICR HD-SDI Camera - DS-2CC52C2S-IT3P

1.3 Megapixel high-performance CMOS sensor

Clear and detailed image of up to 720P resolution

EXIR infrared array technology

Low illumination: 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR

IR cut filter with auto switch

Advanced Engineering Design, High Reliability

Ingress Protection: IP66

Patent universal adjustable structure provides convenient adjustment and high reliability

Camera :

Image Sensor : 2.54cm Progressive Scan CMOS

Effective Pixels : 1280(H)*720(V)

Min. Illumination : 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR

Shutter Time : 1/100 s to 1/100,000 s

Lens : 3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional) Angle of View: 78.8°(3.6mm), 103°(2.8mm), 51.2°(6mm), 37.6°(8mm), 24.6°(12mm), 18.8°(16mm)

Lens Mount : M12

Angle Adjustment : Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°

Day & Night : ICR

Synchronization : Internal synchronization

Video Frame Rate : 720p@25fps/720p@30fps

HD Video Output : SMPTE292M (HD-SDI)

General :

Working Temperature/Humidity : -10 °C - 60 °C (14 °F - 140 °F) Humidity 90% or less (non-condensing)

Power Supply : 12V DC±10%

Power Consumption : Max. 6W

Weather Proof Ratings : IP66

IR Range : 40 meters

Dimension : Φ114.6 × 89.1mm(Φ4.5inch× 3.5inch)

Weight : 250 g (0.55 lb)
