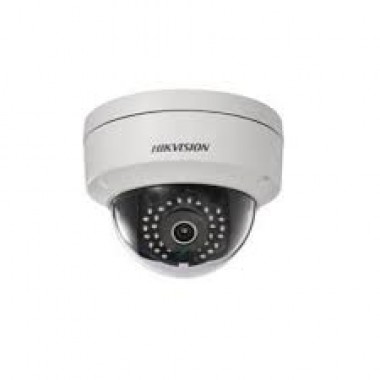

1.3 Megapixel CMOS Vandal-proof Network Dome Camera - DS-2CD2110F-I(W)(S)

Up to 1.3 megapixel (1280 × 960) resolution

Standard video compression with high compression ratio, ROI (region of interest) encoding

Progressive scan CMOS, capture motion video without incised margin

Support dual stream, and the sub-stream for mobile surveillance

High-performance and long service life infrared LED, Approx. 10 to 30 meters IR range

Two-way audio(-S)

Audio I/O(-S)

Support Wi-Fi(-W)

IR cut filter with auto switch

PoE (Power over Ethernet)

Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB

Ingress Protection level: IP67

Impact Protection: IK10

Other functions: rotate mode, alarm, mirror, reset button, etc

Support intrusion detection, line crossing detection

Support VCA, which is compatible with NVR for the second time of video searching and analysing

Camera :

Image Sensor : 2.54cm (1/3inch) Progressive Scan CMOS

Min. Illumination : 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR 0.028 Lux @ (F2.0, AGC ON) ,0 Lux with IR

Shutter Speed : 1/3 s to 1/100,000 s

Lens : 4mm@ F2.0 (2.8mm, 6mm optional) Angle of view: 92.5°(2.8mm), 73.1°(4mm) , 46°(6mm)

Lens Mount : M12

Day &Night : IR cut filter with auto switch

Digital Noise Reduction : 3D DNR

Wide Dynamic Range : Digital WDR

Angle Adjustment : Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0-355°

Compression Standard :

Video Compression : H.264/ MJPEG

H.264 Type : Baseline Profile / Main Profile

Video Bit Rate : 32 Kbps – 8 Mbps

Dual Stream : Yes

Audio Compression(-S) : G.711/G.722.1/G.726/MP2L2

Audio Bit Rate(-S) : 64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2)

Image :

Max. Resolution : 1280 x 960

Max Frame Rate : 50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720) 60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720)

Sub Stream : 50 Hz: 25 fps (320 x 240), 25 fps (352 x 288), 25 fps (640 x 480), 25fps(704 x 576) 60 Hz: 30 fps (320 x 240), 30 fps (352 x 288), 30 fps (640 x 480), 30fps(704 x 576)

Image Settings : Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser

Backlight compensation : Yes, zone optional

ROI : Support

Network :

Network Storage : Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB. NAS (Support NFS,SMB/CIFS)

Detection : Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis

Alarm Trigger : Tampering alarm, Network disconnect, IP address conflict, Storage exception

Protocols : TCP/IP, UDP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour

General : One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access

Standard : ONVIF, PSIA, CGI, ISAPI

Interface :

Communication Interface : 1 RJ45 10M/100M Ethernet interface

Alarm interface : -S: 1 alarm I/O

Audio interface : -S: 1 audio I/O

Wi-Fi Specification(Only for the products with Wi-Fi module built-in) :

Wireless Standards : IEEE802.11b, 802.11g, 802.11n

Frequency Range : 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth : 20/40MHz Support

Protocols : 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM

Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Transfer Rates : 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps

Wireless Range : 50m(depend on environment)

Wireless Standards : IEEE802.11b, 802.11g, 802.11n

General :

Operating Conditions : -30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing)

Power Supply : 12 V DC ± 10% PoE (802.3af)

Power Consumption : Max. 5W

Material : Base: Metal; Top Cover: Plastic

Ingress Protection level : IP67

IR Range : 30 meters

Impact Protection : IK10

Dimensions : Φ111 × 82 (4.4inch × 3.2inch)

Weight : 500g (1.1 lb)
