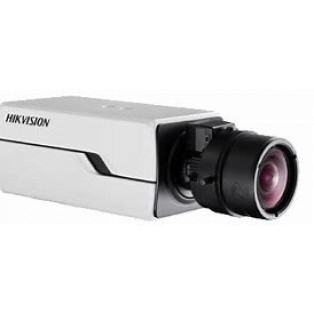

1.3 Megapixel CMOS WDR ICR Network Box Camera - DS-2CD4012FWD-(A)(P)(W)

2.54cm (1/3inch)  progressive scan CMOS

Up to 1280 × 960 resolution

120dB WDR, 3D DNR

Smart Codec

Smart Focus: ABF(-A)

Smart VQD

Smart Face Detection

Smart Audio Detection

Intrusion Detection

Two-way audio, built-in Mic

Defog, EIS, BLC

Wi-Fi optional(-W)

P-iris optional(-P)

Camera :

Image Sensor : 2.54cm (1/3inch) Progressive Scan CMOS

Min. Illumination : Color: 0.01 Lux @ (F1.2, AGC ON) B/W: 0.001 Lux @ (F1.2, AGC ON)

Shutter Speed : 1 s to 1/100,000 s

Slow Shutter : Support

Lens Mount : C/CS mount

Auto-iris : DC drive(-P: support P-Iris)

Day & Night : IR cut filter with auto switch

Digital Noise Reduction : 3D DNR

Wide Dynamic Range : DWDR

Focus : ABF(-A model)

Compression Standard :

Video Compression : H.264+/H.264/MPEG4/MJPEG

H.264 Type : Baseline Profile / Main Profile / High Profile

Video Bit Rate : 32 Kbps – 16 Mbps

Audio Compression : G.711/G.722.1/G.726/MP2L2

Audio Bit Rate : 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)

Image :

Max. Resolution : 1280 × 960

Frame Rate : WDR OFF: 50Hz: 25fps (1280 × 960), 50fps (1280 × 720) 60Hz: 30fps (1280 × 960), 60fps (1280 × 720) WDR ON: 50Hz: 25fps (1280 × 960), 25fps (1280 × 720) 60Hz: 30fps (1280 × 960), 30fps (1280 × 720)

Third Stream : Independent with Main Stream and Sub Stream, up to 50Hz: 25fps(1280 × 960) 60Hz: 30fps (1280 × 960)

BLC : Support

HLC : Support

Smart Defog : Support

EIS : Support

Image Setting : Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser

Day/Night Switch : Auto/Schedule/Triggered by Alarm In

ROI : Support 4 different areas configuration in all the three streams with adjustable 6 levels. Automatically dynamic tracking with face detection can be configured.

Picture Overlay : LOGO picture can be overlaid on video with 128x128 24bit bmp format

Network :

Network Storage : NAS (Support NFS,SMB/CIFS)

Alarm Trigger : Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception

Protocols : TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour

Security : User Authentication, Watermark, IP address filtering, Anonymous access

Standard : ONVIF, ISAPI

Wi-Fi Specification(Only for the products with Wi-Fi module built-in) :

Wireless Standards : IEEE802.11b, 802.11g, 802.11n

Frequency Range : 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth : 20/40MHz Support

Protocols : 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM

Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Transmit Output Power : 11b: 17±1.5dBm @ 11Mbps 11g: 14±1.5dBm @ 54Mbps 11n: 12.5±1.5dBm

Receive Sensitivity : 11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical)

Transfer Rates : 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps

Wireless Range : 50m(depend on environment)

Wireless Standards : IEEE802.11b, 802.11g, 802.11n

Interface :

Audio Input : 1-ch 3.5 mm audio interface, Mic in/Line in. 1 built-in Microphone

Audio Output : 1-ch 3.5 mm audio interface

Communication Interface : 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface

Alarm Input : 1

Alarm Output : 1

Video Output1Vp-p composite output (75 Ω/BNC)

On-board storage : Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button : Yes

General :

Operating Conditions : -30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing)

Power Supply : 24 V AC ± 10%, 12 V DC ± 10%, PoE (802.3af)

Power Consumption : Max. 6 W (Max. 9W with IR cut filter on) -W: Max. 7 W (Max. 10W with IR cut filter on)

Dimensions : 69.8×58×145 mm (2.68inch× 2.56inch× 5.70inch)

Weight : 830 g (1.83 lbs)
