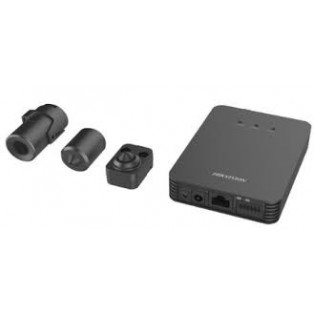

1.3MP Covert Network Camera - DS-2CD6412FWD-XX

0.84cm(1/3”) Progressive Scan CMOS

Up to 1280×960@30fps for real-time output

True WDR, up to 120dB

PoE power supply is supportable

Built-in Micro SD / SDHC / SDXC card slot, up to 128GB

Support HLC, Defog and EIS

Optional appearance of the front-end(the mini bullet and block) and brackets

Camera :

Image Sensor : 0.84cm(1/3”) Progressive Scan CMOS

Min. Illumination : -L10/L20/10/20: Color: 0.037 Lux @(F2.3,AGC ON); B/W: 0.0037Lux @(F2.3,AGC ON) -L30/30: Color: 0.028 Lux @(F2.0,AGC ON); B/W: 0.0028Lux @(F2.0,AGC ON)

Shutter Speed : 1s ~ 1/100,000s

Slow Shutter : Support

Lens : -L10/L20/10/20: 2.8/3.7mm@ F2.3, angle of view: 80°/57° -L30/30: 2.0/2.8/4/6 mm@ F2.0, angle of view: 120°(2.0mm),92°(2.8mm),73° (4mm),46°(6mm)

Lens Mount : M12

Day & Night : Electronic

WDR : 120dB

DNR : 3D Digital Noise Reduction

Number of lenses : C1: Camera body with single lens -C2: Camera body with dual lens

Length of Lens Cable : Optional 2m or 8m

Compression Standard :

Video Compression : H.264/MJPEG4/MJPEG

H.264 Type : Baseline Profile / Main Profile / High Profile

Video Bit Rate : 32 Kbps – 16 Mbps

Audio Compression : G.711/G.722.1/G.726/MP2L2

Audio Bit Rate : 64Kbps(G.711) / 16Kbps(G.726) /64Kbps(MP2L2)

Max. Resolution : 1280 × 960

Frame Rate : 50Hz: 25fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1280 × 960, 1280 × 720)

Third stream : Only single channel camera supports third stream, which is independent with main stream, up to 50Hz: 25fps (1280 × 960); 60Hz: 30fps (1280 × 960)

Image Setting : Rotate mode(first channel), saturation, brightness, contrast, sharpness and gray scale adjustable

BLC : Yes, zone optional

Defog : Support

EIS : Support(First channel)

Highlight Compensation : Support

Day / Night mode : Auto / Timing / Alarm trigger

Image Overlay : Support 128 × 128 size BMP with 24-bit depth image overlay, zone optional

ROI : Up to 4 fixed areas in each stream

Network :

Network Storage : Support Micro SD/SDHC/SDXC slot, up to 128GB,Edge recording, NAS (NFS,SMB/CIFS)

Alarm Trigger : Model with single lens: Intrusion detection, audio exception detection, defocus detection All models: motion detection, face detection, dynamic analysis, tampering alarm, network disconnect, IP address conflicts, storage full, storage error

Standard : ONVIF(PROFILE S, PEOFILE G), ISAPI

General : Reset, flickerless, multi-stream, heartbeat, rotate, password protection, video masking, watermark, anonymous login, IP address filtering

Interface :

Communication : 1 RJ45 10M/100M Ethernet interface/ 1 RS232/ 1 RS-485

Audio Interface : 1 3.5mm audio in(Mic in/Line in)/out interface

Alarm Input : 1

Alarm Output : 1

General :

Working temperature and humidity : -30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing)

Power Supply : 12 VDC ± 10% / PoE (802.3af)

Power Consumption : Max. 8.26 W

Dimensions : 78×105×32 mm (7.79cm(3.07”) × 10.49cm(4.13”) × 3.20cm(1.26”))

Shipping Weight : 2m cable: <570g 8m cable: <680g

Net Weight : Main body: 210g Cylindrical lens: 113g(2m), 233g(8m) L-shaped lens: 99g(2m), 220g(8m) Tube lens: 129g(2m), 242g(8m) Package + accessories: 224g
