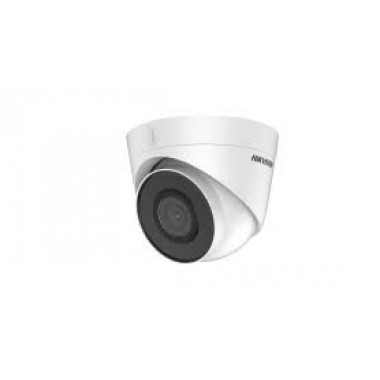

1.3 MP IR Fixed Network Turret Camera DS 2CD1313G0E I

Key Features

2.54 cm (1/2.8 inch) progressive scan CMOS

1280 × 960@30fps

2.8 mm/4 mm fixed lens

H.265+/H.265/H.264+/H.264

3D DNR

Up to 10 m IR range

Camera :

Image Sensor : 2.54 cm (1/2.8 inch) progressive scan CMOS

Min. Illumination : Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)

Shutter Speed : 1/3 s to 1/100, 000 s

Slow Shutter : Yes

Auto-Iris : No

Day &Night : IR cut filter

Digital Noise Reduction : 3D DNR

WDR : DWDR

Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

Lens :

Focal Length : 2.8 mm, 4 mm

Aperture : F2.0

Focus : Fixed

FOV : 2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5° 4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°

Lens Mount : M12

IR :

IR Range : Up to 10 m

Wavelength : 850 nm

Compression Standard :

Video Compression : Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG

H.264 Type : Main Profile/High Profile/Baseline Profile

H.265 Type : Main Profile

Video Bit Rate : 32 Kbps to 8 Mbps

Smart Feature-set :

Region of Interest : 1 fixed region for main stream

Image :

Max. Resolution : 1280 × 960

Main Stream Max. Frame Rate : 50Hz: 25fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1280 × 960, 1280 × 720)

Sub-stream Max. Frame Rate : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Image Enhancement : BLC, 3D DNR

Image Settings :Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch : Auto, scheduled, day, night

Network :

Alarm Trigger : Motion detection, video tampering alarm, illegal login

Protocols : TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP

General Function : Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

Firmware Version : V5.5.83

API : ONVIF (PROFILE S), ISAPI

Simultaneous Live View : Up to 6 channels

User/Host : Up to 32 users 3 levels: Administrator, Operator and User

Client : iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser : IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface :

Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port

General :

Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) Power Consumption and Current 12 VDC, 0.3 A, max: 3.5 : Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Consumption and Current : 12 VDC, 0.3 A, max: 3.5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W

Weight : 190 g (0.4 lb.)
