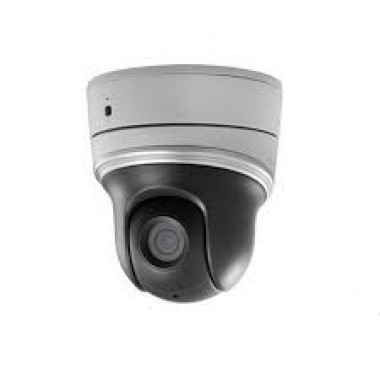

1.3 MP Network IR Mini PTZ Camera - DS-2DE2106IW-DE3

0.84cm(1/3”) Progressive Scan CMOS

1280 × 960@30fps Resolution

6x Zoom

DWDR

3D positioning

PoE (802.3af)

Hik cloud P2P

Up to 30m IR distance

Camera Module :

Image Sensor : 0.84cm(1/3”) progressive scan CMOS

Min. Illumination : Color: 0.05 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @ (F2.0, AGC ON)

Day & Night : IR cut filter

Focus Mode : Auto

Shutter Speed : 1/1 to 1/10,000s

Digital Zoom : 16×

White Balance : Auto/manual/ATW (auto tracing white balance)/indoor/outdoor/daylight lamp/sodium lamp

AGC : Auto/Manual

Backlight Compensation : Support

Wide Dynamic : Support

DNR (Digital Noise Reduction) : Support

Privacy Mask : 8 programmable privacy masks

Lens :

Focal Length : 2.8 to 17mm, 6×

Field of View : 100° to 16.5° (wide-tele)

Working Distance : 10 to 1500mm (wide-tele)

Zoom Speed : Approx. 2s (optical lens, wide-tele)

Aperture Range : e F1.8 to F2.5

Smart :

Smart Detection : Intrusion detection, line crossing detection, audio exception detection, motion detection, and video tampering detection

Smart Recording : Edge storage, smart search in smart NVR, and smart playback

Smart Image Enhancement : HLC

Smart Encoding : Low bitrate, and ROI (Region of Interest) encoding

Smart Alarm : m Alarm for network disconnection, IP address conflict, HDD full, HDD error, and illegal login

Network :

Stream : Support three stream

Main Stream : 50Hz: 25fps (1280 × 960, 1280 × 720)60Hz: 30fps (1280 × 960, 1280 × 720)

Sub Stream : 50Hz: 25fps (704 × 576, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 352 × 240, 320× 240)

Three Stream : 50Hz: 25fps (1280×960,1280×720,704×576,640×480,352×288); 60Hz: 30fps (1280×960,1280×720,704×480,640×480,352×240)

Video Compression : n H.264+/H.264/MJPEG

Audio compression : G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM

Protocols : IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour

Simultaneous Live View : Up to 20 users

User/Host : Up to 32 users, 3 levels: Administrator, Operator and User

Security Measures : User authentication (ID and PW), Host authentication (MAC address), IP address filtering, HTTPS encryption and IEEE 802.1x port-based network access control

Pan and Tilt :

Movement Range : Pan: 350°, Tilt: 0° to 90°

Movement Speed : d Pan: 0.1° to 60°/s, Tilt: 0.1°to 50°/s

Preset No. : 300

Patrol : 8 patrols, up to 32 presets per patrol

Park Action : Preset/patrol/pattern/auto scan/tilt scan/random scan/frame scan/panorama scan

Scheduled Task : Preset/patrol/pattern/auto scan/tilt scan/random scan/frame scan/panorama scan/dome reboot/dome adjust/aux output

Proportional Zoom : Support

Power-off memory : Support

Position Display : On/Off

IR :

IR Distance : Up to 30m

Smart IR : Support

System Integration :

Alarm I/O : 1 alarm input, 1 alarm output

Alarm Linkage : Alarm actions, such as Send Email, Notify Surveillance Center, Upload to FTP/Memory Car/NAS, Trigger Recording etc.

Audio I/O : 1 audio input, 1 audio output

Ethernet : 1 RJ45 10M/100M Ethernet interface

Memory Card : Built-in memory card slot, supporting SD/SDHC/SDXC, up to 128GB

Client : iVMS-4200

Web Browser : IE7+, Chrome18+, Firefox5.0+, Safari5.02+

General :

Power : DC 12V, and PoE (802.3af, class3) Max.: 9W

Working Temperature : -10°C to 50°C (-14°F to 122°F)

Working Humidity : ≤ 90%

Protection Level : TVS 4,000V lightning protection, and surge protection

Dimensions(mm) : Φ125mm × 137.2mm (Φ12.44cm(4.9")×13.71cm(5.4"))

Weight : Approx. 0.65kg (1.4lb)
