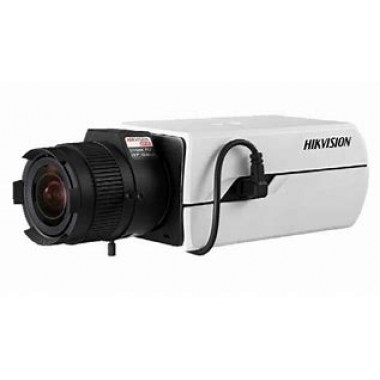

1.3MP Smart IP Box Camera - DS-2CD4010F

2.54cm (1/3inch) Progressive Scan CMOS

1.3MP real time

Up to 25fps frame rate

Slow shutter

Digital WDR

3D DNR

Audio/Alarm IO

Support 128G on-board storage

DC12V/AC24V/PoE

Camera :

Image Sensor : 2.54cm (1/3inch) Progressive Scan CMOS

Min. Illumination : Color: 0.01 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON)

Shutter Speed : 1/3s ~ 1/100,000s

Slow Shutter : Support

Lens Mount : C/CS mount

Auto-iris : DC drive

Day & Night : IR cut filter with auto switch

WDR : DWDR

Compression Standard :

Video Compression : H.264/MJPEG

H.264 Type : Baseline Profile / Main Profile

Video Bit Rate : 32 Kbps – 8 Mbps

Audio Compression : G.711/G.722.1/G.726/MP2L2

Audio Bit Rate : 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)

Image :

Max. Resolution : 1280 × 1024

Frame Rate : 50Hz: 25fps (1280 × 1024,1280 × 960,1280 × 720); 60Hz: 30fps (1280 × 1024,1280 × 960,1280 ×720)

Third Stream : Independent with Main Stream and Sub Stream, up to 50Hz: 25fps (1280 × 960) 60Hz: 30fps (1280 × 960)

Image Enhancement : BLC/3D DNR/ROI/Defog

Image Setting : Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

Day/Night Switch : Auto/Schedule/Triggered by Alarm In

Picture Overlay : LOGO picture can be overlaid on video with 128x128 24bit bmp format

Network :

Network Storage : NAS (Support NFS,SMB/CIFS), ANR

Alarm Trigger : Line crossing detection, Intrusion detection, scene change detection, audio exception detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception

Protocols : TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Security : One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering, Anonymous access

Standard : ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI

Interface :

Audio : 1-ch 3.5 mm audio in( Mic in/Line in)/out interface, 1 build-in Microphone

Communication Interface : 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface

Alarm : 1 input, 1 output (up to DC24V 1A or AC110V 500mA )

Video Output : 1Vp-p composite output (75 Ω/BNC)

On-board storage : Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button : Yes

Smart Feature-set :

Behavior Analysis : Line crossing detection, Intrusion detection

Line Crossing Detection : Cross a pre-defined virtual line

Intrusion Detection : Enter and loiter in a pre-defined virtual region

Exception Detections : Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection

Recognition : Face detection recognition

General :

Operating Conditions : -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)

Power Supply : 24 V AC ± 10%, 12 V DC ± 10%, PoE (802.3af)

Power Consumption : Max. 6 W (Max. 9W with IR cut filter on)

Dimensions : 69.8×58×145 mm (2.75inch× 2.28inch× 5.71inch)

Weight : 830 g (1.83 lbs)
