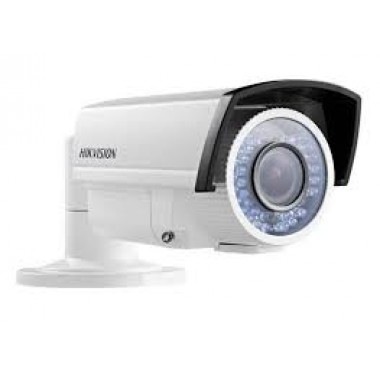

1.37 Mega PICADIS IR Vari-focal Bullet Camera - DS-2CE15F5P(N)-VFIR3

0.84cm(1/3”) PICADIS sensor Ⅱ

Effective pixel: 1305(H) x 1049(V)

720 TVL horizontal resolution

2.8 – 12mm vari-focal lens

True Day/Night

Up to 40m IR distance

Up The Coax(via coaxial cable)

OSD menu, 3D DNR & Smart IR

IP66 weatherproof

Camera :

Image Sensor : 0.84cm(1/3”) 1.37 Mega PICADIS Ⅱ

Signal System : PAL/NTSC

Effective Pixels : 1305 (H) × 1049 (V)

Min. Illumination : 0.1 Lux @ (F1.2,AGC ON),0 Lux with IR 0.14 Lux @ (F1.4,AGC ON),0 Lux with IR

Shutter speed : PAL: 1/25 s to 1/25,000 s NTSC: 1/30 s to 1/30,000 s

Lens : 2.8-12mm @ F1.4 Angle of view: 80° - 27.2°

Lens Mount : φ14

Angle Adjustment : Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°

Day & Night : ICR

Horizontal Resolution : 720 TVL

Synchronization : Internal synchronization

Video Output : 1Vp-p composite output (75 Ω/BNC)

S/N Ratio : More than 62 dB

Menu :

Lens Type : Auto Iris/ELC/ELC&ALC

Automatic Exposure : Globe AE/DWDR

AGC : Low/Middle/High/Of

Slow Shutter : Support

White Balance : Auto/Manual

D/N Mode : Color/BW/SMART IR

3D DNR : Low/Middle/High/Of

Motion Detection : Support, maximum 4 zones

Privacy Mask : On/Off, maximum 8 zones

UTC Function : Support

Language : English/Chinese

Function : Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness, Brightness, Saturation, Resolution, Digital Zoom, Mirror, Reset, etc.

General :

Working Temperature/ Humidity : -20 °C - 60 °C (-4 °F - 140 °F) Humidity 90% or less (non-condensing)

Power Supply : 12 V DC ± 10%

Power Consumption : Max. 5 W

Dimensions : 105 × 86.9 × 267.2mm(φ10.49cm(4.13”) x8.68cm(3.42”) x 26.72cm(10.52”))

Weight : 1350g (2.97 lb)

Ingress Protection : IP66

IR Range : 40 m
