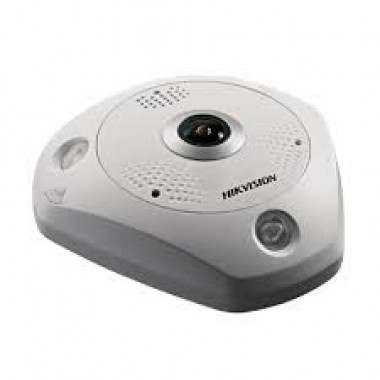

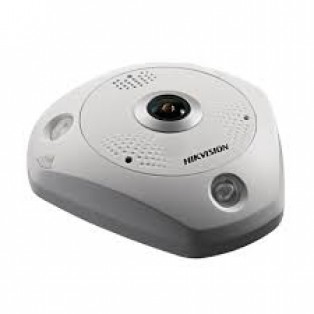

12 MP IR Network Fisheye Camera - DS-2CD63C5G0-I(V)(S)

1/1.7” Progressive Scan CMOS

Max. 4000 × 3000 @20fps

Up to 18 live view display modes

Digital WDR

Up to 15m IR range

Built-in microphone and speaker

Smart features 6 behavior analyses, and 3 exception detections Heat map with deep learning algorithm Intersection analysis by deep learning

Panomorph lens RPL: B9VVT

Camera :

Image Sensor : 1/1.7'' Progressive Scan CMOS

Min. Illumination : Color: 0.05 Lux @ (F2.2, AGC ON), B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR

Shutter Speed : 1 s to 1/100,000 s

Slow Shutter : Yes

Day & Night : IR Cut Filter

Digital Noise Reduction : 3D DNR

WDR : Digital WDR

Lens :

Focal Length : 1.29 mm

Aperture : F2.2

FOV : Horizontal FOV: 180°, vertical FOV: 180°

Lens Mount : M12

IR :

IR Range : Up to 15 m IR range, 3 LEDs. Each LED is independently controlled.

Wavelength : 850 nm

Compression Standard :

Video Compression : MMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG

H.264 Type : Baseline Profile/ Main Profile /High Profile

H.264+ : Main stream supports

H.265 Type : Main Profile

H.265+ : Main stream supports

Video Bit Rate : 32 Kbps to 16 Mbps

SVC : H.265 and H.264 support

Smart Feature-set :

Behavior Analysis : Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Exception Detection : Audio exception detection

Intersection Analysis : Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways

Heat Map : A graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available, space heat map and time heat map line chart

People Counting : Counts people entering, exiting and passing by separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height

Region of Interest : 4 fixed regions for main stream

Image :

Max. Resolution : 4000 × 3000

Main Stream Max. Frame Rate : 50Hz: 20fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560) 60Hz: 20fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560)

Sub Stream Max. Frame Rate : 50Hz: 20fps (720 × 720, 640 × 480) 60Hz: 20fps (720 × 720, 640 × 480)

Image Enhancement : BLC, HLC, defog, 3D DNR

Image Setting : Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser

Day/Night Switch : Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Picture Overlay : LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Live View Display :

Mount Type : Support table, wall, and ceiling mounting

Decoding Mode : Support hardware decoding and software decoding

Display Mode : 18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere,

Display Mode : cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ

Display Mode : Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder

Display Mode : Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view,

Audio (-S) :

Environment Noise Filtering : Yes

Audio Sampling Rate : 8 kHz/16 kHz

Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

Network :

Network Storage : Support microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger : Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error

Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Security Measure : Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF

General Function : One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version : 5.5.73

API : ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live ViewUp : to 20 channels

User/Host : Up to 32 users. 3 user levels, administrator, operator and user

Client : iVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200, Hik-Central

Web Browser : IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+

Interface :

Communication Interface : 1 RJ45 10M/100M/1000M self-adaptive Ethernet port

Audio : 2 built-in microphones, 1 built-in speaker, mono sound -S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)

Alarm (-S) : 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A

On-board storage : Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Reset Button : Yes

General :

Operating Conditions : -40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)

Power Supply : 12 VDC±20%, PoE (802.3at, class 4), -S model: two-core terminal block Without –S model: Φ 5.5 × 2.1 mm coaxial power plug

Power Consumption : 12 VDC, 1 A, max. 12.5 W s PoE (802.3at, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W

Protection Level (-V) : IP67, IK10

Heater : Yes

Material : Metal

Dimensions : Without –V model: 167.4 × 152.8 × 46.8 mm (6. 6" × 6" × 1.8") With –V model: 167 × 152.8 × 55 mm (6. 6" × 6" × 2.2")

Weight : Approx. 1400 g (3.09 lbs)
