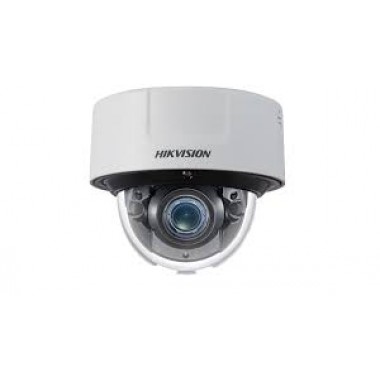

12 MP IR Varifocal Dome Network Camera - DS-2CD51C5G0-IZS

1/1.7” Progressive Scan CMOS

4000 × 3000 @ 20fps

MJPEG up to 1920 × 1080 @ 30fps

2.8 to 12 mm motorized lens

Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR

H.265, H.265+, H.264, H.264+

Digital WDR

IR range: up to 30 m

Alarm 1 input/1 output, audio 1 input/1 output, 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

IK10

5 streams and up to 5 custom streams

6 behavior analyses, 3 exception detection, and face detection

Built-in microSD/SDHC/SDXC card slot, up to 256 GB

Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, and object removal are supported

Camera :

Image Sensor : 1/1.7ʺ Progressive Scan CMOS

Min. Illumination : Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Speed : 1 s to 1/100,000 s

Slow Shutter : Yes

Day & Night : IR Cut Filter

WDR : Digital WDR

Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens :

Lens Type : Motorized lens, 2.8 to 12 mm

Aperture : F1.2 to 2.5

Focus : Auto, semi-auto, manual

Auto-Iris : P-iris

FOV : Horizontal FOV 101° to 36.1°, vertical FOV 72° to 27.2°, diagonal FOV 130° to 45.2°

Lens Mount : Integrated

Illuminator :

IR Range : Up to 30 m

Wavelength : 850 nm

Video :

Max. Resolution : 4000 × 3000

Video Stream : 5 defined streams and up to 5 custom stream

Main Stream : 50Hz: 20fps (4000 × 3000), 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720) 60Hz: 20fps(4000 × 3000), 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720)

Sub Stream : 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)

Third Stream : 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream : 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream : 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)

Custom Stream : 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

Video Compression : Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

H.264 Type : Baseline Profile/Main Profile/High Profile

H.264+ : Main stream support

H.265 Type : Main Profile

H.265+ : Main stream support

Video Bit Rate : 32 Kbps to 16 Mbps

Scalable Video Coding (SVC) : H.264 and H.265 encoding

Audio :

Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/MP3

Audio Bit Rate : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/ 8-320Kbps(MP3)

Environment Noise Filtering : Yes

Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set :

Smart Event : Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regi

Basic Event : Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Statistics : Counting

Linkage Method : Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email

Region of Interest : Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream

Image :

Image Enhancement : BLC, HLC, 3D DNR, Defog, EIS, distortion correction

Image Setting : Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Target Cropping : Yes

Day/Night Switch : Day/Night/Auto/Schedule/Triggered by Alarm In

Picture Overlay : LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

SNR : ≥52dB

Network :

Network Storage : microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported

Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

API : ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome

Smooth Streaming : Yes

Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, c

Simultaneous Live View : Up to 20 channels

User/Host : Up to 32 users. 3 user levels: administrator, operator and user

Client : iVMS-4200, Hik-Connect, Hik-Central

Web Browser : Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome57.0+，Firefox52.0+

Interface :

Audio : 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound

Communication Interface : 1 RJ45 10M/100M/1000M Ethernet port 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Alarm : 1 input, 1 output (max. 24 VDC/VAC, 1A)

Video Out : 1Vp-p composite output (75 Ω/CVBS), only for adjustment

Power Output : 12 VDC, max. 200 mA

Interface Style : Connector panel

On-board Storage : Built-in microSD/SDHC/SDXC slot, up to 256 GB

General :

Firmware Version : 5.6.0

Web Client Language : 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chi

General Function : Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening

Reset : Reset via reset button on camera body, web browser and client software

Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply : 12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3af, class 3)

Power Consumption and Current : With extra load: 12 VDC, 0.8 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3 Without extra load: 12 VDC, 0.6 A, max. 8.0 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3 "with extra load" means that an extra device is connected

Material : Metal

Sustainability : PVC FREE

Dimensions : Camera: Φ141 × 123 mm (Φ5.5″ × 4.8″) With package: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)

Weight : Camera: approx. 900 g (1.98 lb.) With Package: approx. 1250 g (2.76 lb.)

Approval :

EMC : 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Safety : UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015

Chemistry : 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protection : Ingress protection: IK10 (IEC 62262:2002)
