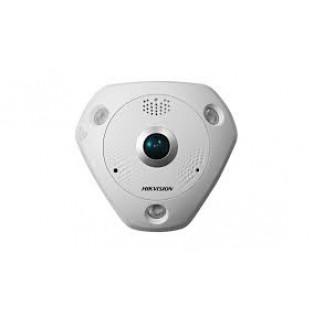

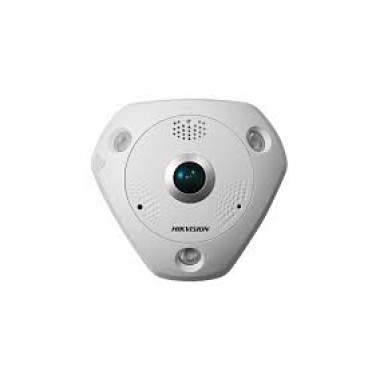

12 MP Network Fisheye Camera - DS-2CD63C2F-I(V)(S)

2.54cm(1/1.7”) Progressive Scan CMOS

Max. 4000 × 3072 @20fps

Up to 14 live view display modes

Digital WDR

Up to 15m IR range

Built-in microphone and speaker

2 behavior analyses, 1 statistic

With – V model: IK10 for camera housing, IP66

Camera :

Image Sensor : 2.54cm(1/1.7”) ' Progressive Scan CMOS

Min. Illumination : 0.01 Lux @ (F1.2, AGC ON), 0.04 Lux @ (F2.4, AGC ON), 0 Lux with IR

Shutter Speed : 1/3 s – 1/100,000 s

Slow Shutter : Support

Lens : 2 mm @F2.4, horizontal field of view: 180° (wall mount), 360°(ceiling mount), 360°(table mount)

Lens Mount : M12

Day & Night : IR Cut Filter

Digital Noise Reduction : 3D DNR

WDR : Digital WDR

Compression Standard :

Video Compression : Main stream: H.264Sub stream: H.264/MJPEG

H.264 Type : Baseline Profile/Main Profile/High Profile

H.264+ : Support only when the display mode is Fisheye View

Video Bit Rate : 256 Kbps – 16 Mbps

Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
