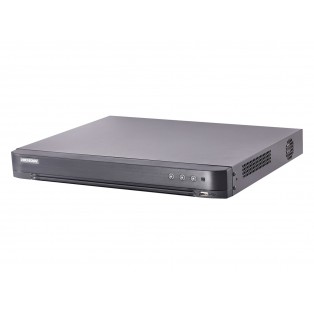

16 Channel 4 SATA Network Video Recorder - DS-7716NI-Q4 (B)

Key Features

HD Input :

H.265+/H.265/H.264/H.264+ video formats

Connectable to the third-party network cameras

Up to 8/16/32-ch IP cameras can be connected for DS-7708/7716/7732NI-Q4

Recording at up to 8 MP resolution  Live view, storage, and playback of the connected camera at up to 8 MP resolution

HD Output :

HDMI/VGA independent output DS-7708NI-Q4 and DS-7716NI-Q4

HDMI and VGA simultaneous outputs DS-7732NI-Q4

HDMI Video output at up to 4K (3840 × 2160) resolution DS-7708NI-Q4 and DS-7716NI-Q4

HD Storage :

4 SATA interfaces connectable for recording and backup

H.265+ compression effectively reduces the storage space and costs by up to 75%

HD Transmission :

2 self-adaptive 10/100/1000 Mbps network interfaces

Various Applications :

Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc

Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized

VCA detection alarm is supported

Instant playback for assigned channel during multi-channel display mode

Video/Audio input :

IP video input : 16-ch Up to 8 MP resolution

Two-way audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Network :

Incoming bandwidth : 160 Mbps

Outgoing bandwidth : 80 Mbps

Video/Audio output :

Recording resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

HDMI output resolution : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;

VGA output resolution : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;

Decoding :

Audio output Decoding format : 1-ch, RCA (Linear, 1 KΩ) H.265/H.265+/H.264/H.264+/MPEG4

Live view / Playback resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous playback : 8-ch

Capability : 1-ch @ 8 MP (30 fps) / 8-ch @ 1080p (30 fps)

Network management :

Network protocols : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk :

SATA : 4, SATA interface

Capacity : Up to 6 TB capacity for each disk

External interface :

Network interface : 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Serial interface : 1 RS-485 (half-duplex), 1 RS-232

USB interface : Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm in/out : 16/4 (16/8 optional)

General :

Power supply : 100 to 240 VAC, 50 to 60Hz, 1.5 A

Consumption (without hard disk) : ≤ 15 W

Working temperature : -10 °C to 55 °C (14 °F to 131 °F)

Working humidity : 10 % to 90 %

Dimensions (W × D × H) : 440 × 393 × 75 mm (17.3" × 15.5" × 3.0")

Weight (without hard disk) : ≤ 5 kg (11 lb)
