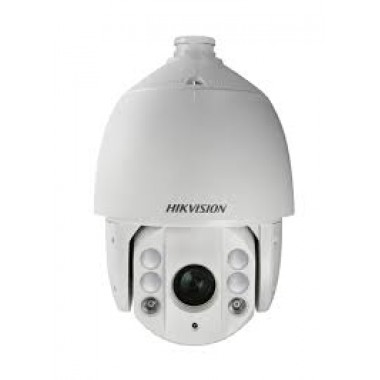

17.78cm 1080p IR Turbo HD Speed Dome - DS-2AF7230TI-AW

2.54cm progressive scan CMOS

Max. image resolution: 1920 × 1080

Min. illumination: Color: 0.05Lux @ (F1.6, AGC ON)

B/W: 0.01Lux @ (F1.6, AGC ON)

0 Lux with IR

30× optical zoom, focal length 4.5 mm to 135 mm

16× digital zoom

200 m IR distance

IR cut filter

3D DNR, true WDR

TVI and CVBS dual output

Auto-tracking

Camera Module :

Image Sensor : 2.54cm progressive scan CMOS

Max. Image Resolution : 1920 × 1080

Frame Rate : 50Hz: 25fps @ (1920 × 1080) 60Hz: 30fps @ (1920 × 1080)

Min. Illumination : Color: 0.05Lux @ (F1.6, AGC ON) B/W: 0.01Lux @ (F1.6, AGC ON) 0 lux with IR

White Balance : AUTO/HAUTO/ATW/INDOOR/OUTDOOR/SELF DEFINE

AGC : AUTO/MANUAL

S/N Ratio : ≥ 52 dB

DNR : 3D DNR

WDR : True WDR

Shutter Time : PAL: 1/1 to 1/10,000 s NTSC: 1/1 to 1/10,000 s

Day & Night : IR Cut Filter

Privacy Mask : 8 privacy masks

Digital Zoom : 16×

Lens :

Focus Mode : Auto/Semiauto/Manual

Focal Length : 4.5 mm to 135 mm, 30× Optical

Aperture Range : F 1.6 to F 4.4

Angle of View : 65.1°to 2.3° (Wide to Tele)

Min. Working Distance : 10 mm to 1500 mm (Wide to Tele)

Zoom Speed : Approx. 3.0 s (Optical, Wide to Tele)

Pan and Tilt :

Pan Range : 360° endless

Pan Speed : Pan manual speed: 0.1°to 180°/s

Pan preset speed: 180°/s : Tilt Range

-15° to 90°(Auto flip) : Tilt Speed

Tilt manual speed: 0.1° to 120°/s : Tilt preset speed: 120°/s

Proportional Zoom : Rotation speed can be adjusted automatically according to zoom multiples

Patrol : 10 patrols, up to 32 presets per patrol

Pattern : 5 patterns, with the total recording time not less than 10 minutes

Power-off Memory : Support

Park Action : Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Day Mode/Night Mode/None

PTZ Position Display : ON/OFF

Preset Freezing : Support

Scheduled Task : Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Frame Scan/Random Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None

IR :

IR Distance : 200 m

Smart IR : Automatically adjusted, depending on the zoom ratio

Input/Output :

Turbo HD Output : 1 turbo 1080p output, NTSC (or PAL) composite, BNC

CVBS Output : 1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC

RS-485 Interface : Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

UTC function : HIKVISION_C *Need UTC controller if DVR don’t support UTC function

General :

Menu Language : English, Chinese

Power : 24 VAC Max.: 45 W (IR: 15 W

Heater: 5 W) : Working Temperature

Outdoor: -30°C to 65°C (-22°F to 149°F) : Working Humidity

90% or less : Protection Level

IP66 standard (outdoor dome) TVS 6,000 V lightning protection, surge protection and voltage transient protection : Mounting

Various mounting modes optional : Dimension

Φ 220 mm × 353.4 mm (Φ 8.66inch×13.91inch) : Weight (approx.)
