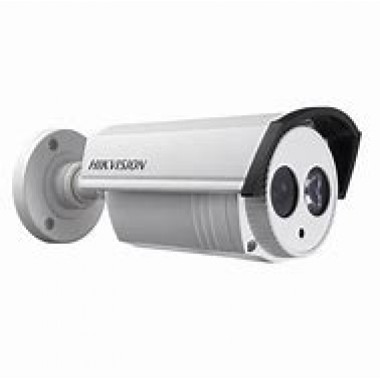

2 Megapixel 2.54cm CMOS ICR HD-SDI Bullet Camera - DS-2CC12D5S-IT3

2 Megapixel high-performance CMOS sensor

Clear and detailed image of up to 1080P resolution

EXIR infrared array technology

Low illumination: 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR

IR cut filter with auto switch

Auto white balance, auto gain control, backlight compensation, and auto electronic shutter control for different surveillance environment

Advanced Engineering Design, High Reliability

Ingress Protection: IP66

Camera :

Image Sensor : 2.54cm Progressive Scan CMOS

Signal System : PAL/NTSC

Effective Pixels : 1920(H)*1080(V)

Min. Illumination : 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR

Shutter Time : 1/25 s to 1/50,000 s

Lens : 3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional) Angle of View: 80.9°(3.6mm), 103.5°(2.8mm), 54.3°(6mm), 38°(8mm), 24.3°(12mm), 18.9°(18mm)

Lens Mount : M12

Day & Night : ICR

Synchronization : Internal synchronization

Video Frame Rate : 1080p@25fps/1080p@30fps

HD Video Output : SMPTE292M (HD-SDI)

CVBS Output : 1Vp-p Composite Output(75Ω/BNC)

S/N Ratio : More than 52dB

Menu :

Scene : Indoor, Outdoor, Indoor1, LOW-LIGHT

Camera ID : On/off (15 characters, position programmable)

AGC : Support

D/N Mode : Color/BW/EXT

White Balance : ATW, AWC-SET, Indoor, Outdoor, Manual

Privacy Mask : On/Off, maximum 8 zones

Motion Detection : On/Off, maximum 4 zones

BLC : Support

Anti-flicker : On/off

Language : English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic

Functions : Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM

General : Working Temperature/Humidity

-10 °C - 60 °C (14 °F - 140 °F) Humidity 90% or less (non-condensing) : Power Supply

12V DC±10% : Power Consumption

Max. 7W : Weather Proof Ratings

IP66 : IR Range

40 meters : Dimension

105×104.8×263.1mm(4.13inch ×4.13inch×10.36inch) : Weight
