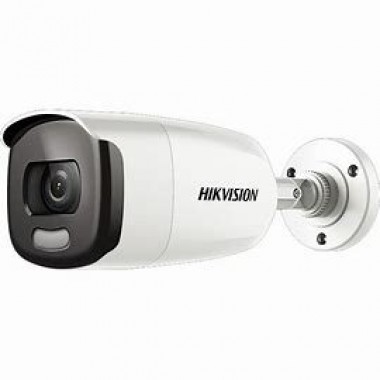

2 MP Full Time Color Bullet Camera - DS-2CE12DFT-F

Key Feature

2 MP high performance CMOS

1920 × 1080 resolution

Full time color

3.6 mm, 6 mm fixed lens

Up to 40 m white light distance

OSD menu, 3D DNR, true WDR

4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

IP67

Up the coax (HIKVISION-C)

Camera :

Image Sensor : 2 MP CMOS image sensor

Resolution : 1920 (H) × 1080 (V)

Frame Rate : PAL: 1080p@25fps NTSC: 1080p@30fps

Min. illumination : Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time : PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Slow Shutter : Max. 16x

Lens : 3.6 mm, 6 mm fixed lens

Field of View : 3.6 mm, horizontal FOV: 83.0°, vertical FOV: 44.4°, diagonal FOV: 98.0° 6 mm, horizontal FOV: 51.0°, vertical FOV: 28.5°, diagonal FOV: 58.7°

Lens Mount : M16

Day & Night : Color

Angle Adjustment : Pan: 0° to 360°; Tilt: 0° to180°; Rotate: 0° to 360°

Synchronization : Internal synchronization

WDR (Wide Dynamic Range) : 130 dB

Menu :

Image Mode : STD/HIGH SAT

AGC : Yes

White Balance : Auto/Manual

HLC : Yes

BLC (Backlight Compensation) : Yes

Privacy Mask : 4 programmable privacy masks

Motion Detection : 4 programmable areas

WDR : Yes

Functions : Brightness, Sharpness, 3D DNR, Mirror, Smart light

Interface :

Video Output : 1 HD analog output

Switch Button : TVI/AHD/CVI/CVBS

General :

Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply : 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.

Power Consumption : Max. 4.2 W

Protection Level : IP67

Material : Front Cover: Metal Main Body: Plastic Bracket: Metal

White Light : Up to 40 m

Communication : Up the coax, Protocol: HIKVISION-C (TVI output)

Dimensions : 223.1 mm × 77.1 mm × 82.6 mm (8.78" × 3.04" × 3.25")

Weight : Approx. 436 g (0.96 lb.)
