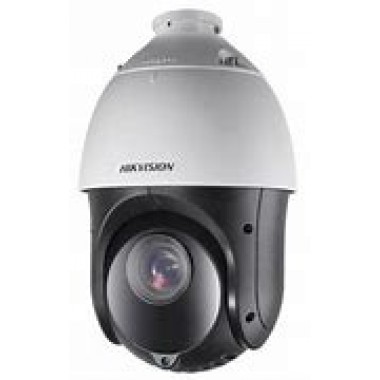

2 MP IR Turbo 4-Inch Speed Dome - DS-2AE4215TI-D

2.54cm HD progressive scan CMOS

1920 × 1080 resolution

15× optical zoom, 16× digital zoom

120 dB Ture WDR (Wide Dynamic Range)

Up to 100 m IR distance

3D intelligent positioning

Switchable TVI/AHD/CVI/CVBS video outputs

Camera :

Model : DS-2AE4215TI-D(C)

Image Sensor : 2.54cm progressive scan CMOS

Max. Image Resolution : 1920 × 1080

Frame Rate : 50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080)

Min. Illumination : Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR

White Balance : AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR

AGC : AUTO/MANUAL

DNR : 3D DNR

WDR : ≥ 120 dB

Shutter Time : PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s

Day & Night : IR cut filter

Digital Zoom : 16×

Privacy Mask : 8 programmable privacy masks

BLC (Backlight Compensation) : Yes

HLC (highlight Compensation) : Yes

EIS (Electric Image Stabilization) : Yes

Reginal Focus : Yes

Lens :

Focus Mode : Auto/Semiauto/Manual

Focal Length : 5 mm to 75 mm, 15× Optical

Aperture Range : F 1.6 to F 3.5

Horizontal Field of View : 53.8° to 4.0°(wide-tele)

Min. Working Distance : 10 mm to 1500 mm (wide to tele)

Zoom Speed : Approx. 2.4 s (optical, wide to tele)

Pan and Tilt :

Pan Range : 360° endless

Pan Speed : Pan manual speed: 0.1°to 80°/s Pan preset speed: 80°/s

Tilt Range : -15° to 90°(auto flip)

Tilt Speed : Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s

Proportional Zoom : Rotation speed can be adjusted automatically according to zoom multiples

Presets : 256

Patrol : 10 patrols, up to 32 presets per patrol

Pattern : 5 patterns, with the total recording time no less than 10 minutes

Power-off Memory : Yes

Park Action : Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None

PTZ Position Display : ON/OFF

Preset Freezing : Yes

Scheduled Task : Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None

Infrared :

IR Distance : Up to 100 m

IR Intensity : Automatically adjusted depending on the zoom ratio

Input/Output :

Video Output : Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)

RS-485 Interface : Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

UTC function : UTC protocol (or HIKVISION-C protocol in previous DVR)

General :

Menu Language : English

Power : 12 VDC Max.20 W (IR:7 W)

Working Temperature : -30°C to 65°C (-22°F to 149°F)

Working Humidity : 90% or less

Protection Level : IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection

Mounting : Various mounting modes optional

Dimension : Ø 164.5 mm × 295 mm (Ø 6.47" × 11.61")

Weight (approx.) : 2Kg (4.41Ib.)
