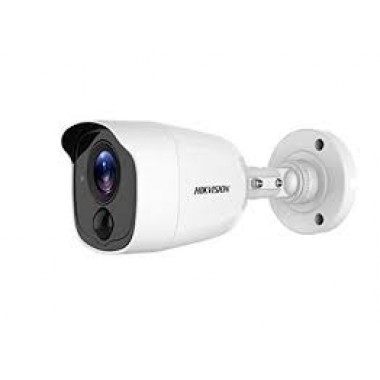

2 MP Ultra-Low Light PIR Bullet Camera - DS-2CE11D8T-PIRL

2 MP high performance CMOS

Ultra-low light

1920 × 1080 resolution

2.8 mm, 3.6 mm fixed focal lens

PIR detection, visual alarm

120 dB true WDR, 3D DNR

EXIR 2.0, smart IR, up to 20 m IR distance

IP67

Up the coax (HIKVISION-C)

Camera :

Image Sensor : 2.0 megapixel progressive scan CMOS

Signal System : PAL/NTSC

Frame Rate : pAL: 1080p@25fps NTSC: 1080p@30fps

Resolution : 1920 (H) x 1080 (V)

Min. illumination : Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time : pAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Slow Shutter : Max. 16 times

Lens : 2.8 mm, 3.6 mm fixed focal lens

Horizontal Field of View : 103.5° (2.8 mm), 82.6° (3.6 mm)

Lens Mount : M12

Visual Alarm : Yes

Day & Night : IR cut filter

Angle Adjustment : 0°to 360°, Tilt: 0°to 180°, Rotate: 0°to 360°

Synchronization : Internal synchronization

WDR (Wide Dynamic Range) : > 120 dB

Menu :

White Light : Alarm/Off

AGC : Yes

Day/Night Mode : Auto/Color/BW (Black and White)

White Balance : ATW/MANUAL

Privacy Mask : ON/OFF, 4 programmable privacy masks

Motion Detection : 4 programmable motion areas

Backlight Compensation : WDR/BLC/OFF

3D DNR (Digital Noise Reduction) : Level 1 to 10

Language : English, Chinese

Functions : Brightness, Sharpness, Mirror, Smart IR

Interface :

Video Output : 1 HD analog output

General :

Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply : 12 VDC ±25%

Power Consumption : Max. 4.5 W

Protection Level : IP67

Material : Metal

IR Range : Up to 20 m

Communication : Up the coax, Protocol: HIKVISION-C (TVI output)

Dimensions : 68 mm × 70 mm × 179.8 mm ( 6.80cm(2.68″) × 7.01cm(2.76") × 17.98cm(7.08") )

Weight : Approx. 345 g (0.76 lb.)
