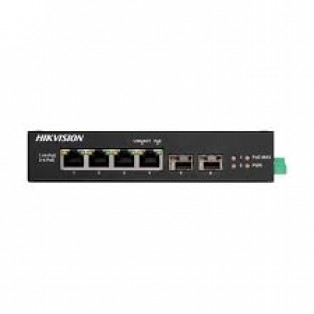

4-Port Gigabit Unmanaged Hi-PoE Switch - DS-3T0506HP-E/HS

DS-3T0506HP-E/HS switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and wider temperature (-30 to 65 °C) design on the basis of high-performance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.

Network parameters :

Port number : 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports

Port type : RJ45 port, full duplex, MDI/MDI-X adaptive

Forwarding mode : Store-and-forward switching

Working mode : Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode

Ports for long-distance transmission : Ports 3 and 4

MAC address table : 4 K

Switching capacity : 22 Gbps

Packet forwarding rate : 8.928 Mpps

Internal cache : 1.5 Mbits

PoE power supply :

PoE standard : Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 4: IEEE 802.3af, IEEE 802.3at

PoE power pin : Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.

PoE port : Ports 2 to 4

Hi-PoE port : Port 1

Max. port power : Port 1: 60 W Ports 2 to 4: 30 W

PoE power budget : 60 W

Dialing function :

Long range : Ports 3 and 4: up to 300 m.

Port isolation : Ports 1 to 4: port isolation mode to improve network security

PoE watchdog : Ports 1 to 4: auto detect and restart the cameras that do not respond.

General :

Shell : Metal material, fan-free design

Gross weight : 0.94 kg (2.07 lb)

Net weight : 0.38 kg (0.84 lb)

Dimension (L × H × D) : 158 mm × 101.2 mm × 31.6 mm (6.22” × 3.98” × 1.24”)

Operating temperature : -30 °C to 65 °C (-22 °F to 149°F)

Storage temperature : -40 °C to 85 °C (-40 °F to 185 °F)

Operating humidity : 5% to 95% (no condensation)

Storage humidity : 5% to 95% (no condensation)

Power supply : 48 to 57 VDC, 1.35 A Max.

Power consumption in idle : < 5 W

Max. power consumption : 65 W

Power source : 65 W

Approval :

EMC : FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)

Safety : UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Chemistry : CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
