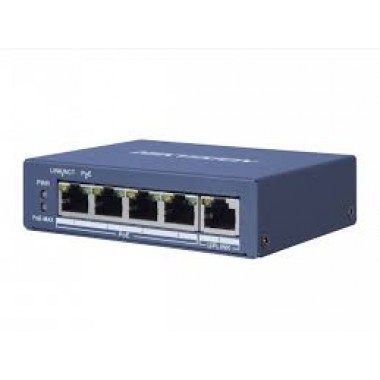

5-Port Gigabit Unmanaged Hi-PoE Switch DS-3E0505HP-E

DS-3E0505HP-E switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of high-performance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.

Network parameters :

Port number : 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port and 1 × gigabit RJ45 port

Port type : RJ45 port, full duplex, MDI/MDI-X adaptive

Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab

Forwarding mode : Store-and-forward switching

Working mode : Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode

Ports for long-distance : transmissionPorts 3 and 4

MAC address table : 2 K

Switching capacity : 10 Gbps

Packet forwarding rate : 7.44 Mpps

Internal cache : 1 Mbits

PoE power supply :

PoE standard : Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 4: IEEE 802.3af, IEEE 802.3at

PoE power pin : Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously

Hi-PoE port : Port 1

Max. port power : Port 1: 60 W Ports 2 to 4: 30 W

PoE power budget : 60 W

Dialing function :

Long range : Ports 3 and 4: up to 300 m; and the speed rate of the port is 10 Mbps.

Port isolation : Ports 1 to 4: port isolation mode to improve network security

PoE watchdog : Ports 1 to 4: auto detect and restart the cameras that do not respond.

General :

Shell : Metal material, fan-free design

Net Weight : 0.27 kg (0.59 lb)

Dimension (L × H × D) : 121 mm × 88.1 mm × 27.6 mm (4.76” × 3.47” × 1.09”)

Operating temperature : -10 °C to 40 °C (14 °F to 104 °F)

Storage temperature : -40 °C to 85 °C (-40 °F to 185 °F)

Operating humidity : 5% to 95% (no condensation)

Storage humidity : 5% to 95% (no condensation)

Power supply : 48 VDC, 1.35 A

Power consumption in idle : < 5W

Max. power consumption : 65 W

Power source : 65 W

Approval :

EMC : FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)

Safety : UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Chemistry : CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
