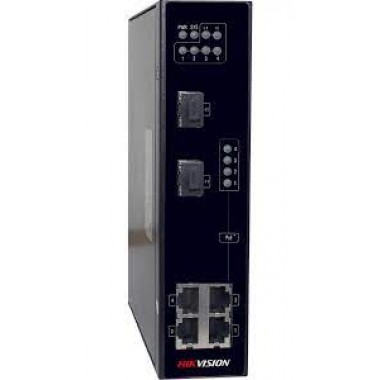

DS-3T0306P Switch

Keys Features

High performance industrial PoE switch.

DS-3T0306P supports IEEE 802.3AF/AT standard.

POE port maximum output power 30W (input voltage is greater than 50V).

Design of redundant dual power input.

Working environment temperature of no fan -40℃to +75℃.

The average failure time reached 400 thousand hours.

IEEE802.3x full duplex, backpressure flow control Flow control.

Item

Backplane : 8.8Gbps

Forwarding rate : 3.6Mpps

MAC : 4K

Ports : 4 100M Base-T ports+2 1000Base-X ports

Dimensions(W×D×H)(mm) : 155x130x42

Consumption : <9W

POE/POE+ : Support 802.3at/af

Power budget : ≤120w (Based on power adapter)

Install method : DIN rail

Power supply : DC：44～57VDC

Environment : Operating temperature/humidity: -40℃-75℃，5%-95% non-condensing Storage temperature/humidity: -40℃-85℃；5%-95% non-condensing

Protection Grade : IP40

EMI : FCC 47 CFR Part 15 Class A EN55022 Class A

EMS : IEC (EN )61000‐4‐2, Class 4 IEC (EN )61000‐4‐4, Class 2 IEC (EN )61000‐4‐5, Class 2 IEC (EN )61000‐4‐11, Class 4 IEC (EN )61000‐4‐12, Class 4
