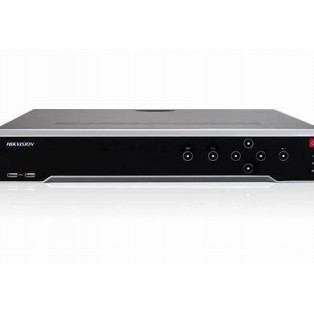

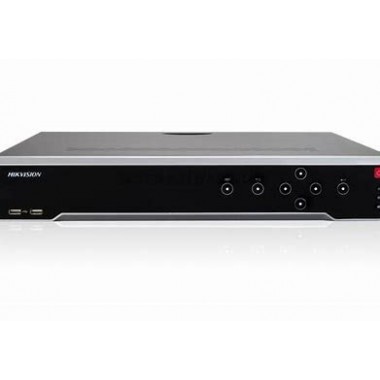

(Version 3.0) - DS-7716NI-K4

Key Feature :

H.265+/H.265/H.264+/H.264 video formats

Up to 8/16/32-ch IP camera inputs

Up to 2-ch@8 MP/16-ch@1080p decoding capacity

Up to 256 Mbps incoming bandwidth

Professional and Reliability :

H.265+ compression effectively reduces the storage space by up to 75%

Dual-OS design to ensure high reliability of system running

Adopt stream over TLS encryption technology which provides more secure stream transmission service

HD Video Output :

Provide independent HDMI and VGA outputs

HDMI video output at up to 4K resolution

Storage and Playback :

4 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)

8/16-ch synchronous playback

Smart Function :

Support multiple VCA (Video Content Analytics) events

Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting

Network & Ethernet Access :

2 self-adaptive 10/100/1000 Mbps Ethernet interfaces

Hik-Connect for easy network management

Video and Audio :

IP video input : 16-ch

IP video input : Up to 12 MP resolution

Incoming bandwidth : 256 Mbps

Outgoing bandwidth : 256 Mbps

HDMI output : 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

VGA output : 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video output mode : HDMI/VGA independent output

CVBS output : N/A

Audio output : 1-ch, RCA (Linear, 1 KΩ)

Two-way audio input : 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding :

Decoding format : H.265/H.265+/H.264/H.264+/MPEG4

Recording resolution : 12MP/8 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous playback : 16-ch

Capability : 2-ch@8 MP (25 fps)/4-ch@4 MP (30 fps)/16-ch@1080p (30 fps)

Stream type : Video, Video & Audio

Audio compression : G.711ulaw/G.711alaw/G.722/G.726

Network :

Remote connection : 64-ch

Network protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network interface : 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface :

Serial interface : 1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional)

SATA : 4 SATA interfaces

Capacity : Up to 10 TB capacity for each disk

Alarm in/out¹ : 16/4 (16/8 is optional)

USB interface : Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General :

Power supply : 100 to 240 VAC, 50 to 60Hz

Consumption (without HDD) : ≤ 20 W

Working temperature : -10 °C to 55 °C (14 °F to 131 °F)

Working humidity : 10% to 90%

Dimension (W × D × H) : 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")

Weight (without HDD) : ≤ 5 kg (11. lb)

Certification :

FCC : Part 15 Subpart B, ANSI C63.4-2014

CE : EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
