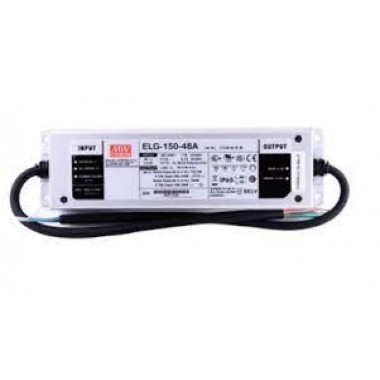

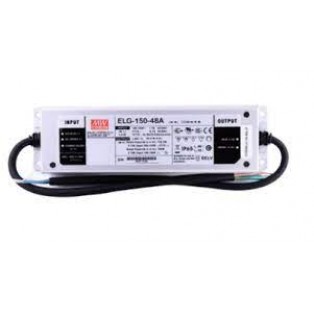

84~150W Constant Voltage + Constant Current LED Driver - ELG-150-48A

ELG-150-48 is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-150 operates from 100～305VAC Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

OUTPUT :

DC VOLTAGE : 48V

CONSTANT CURRENT REGIONNote.2 : 24 ~ 48V

RATED CURRENT : 3.13A

RATEDCURRENT(forBETypeonly) : 2.8A

RATED POWER : 100VAC ~ 180VAC, 105W, 200VAC ~ 305VAC, 50.2W, 134.4W

RIPPLE & NOISE (max.) Note.3 : 250mVp-p

VOLTAGE ADJ. RANGE : Adjustable for A/AB-Type only (via the built-in potentiometer) 43.2 ~ 52.8V

CURRENT ADJ. RANGE : Adjustable for A/AB-Type only (via the built-in potentiometer) 1.56 ~ 3.13A

VOLTAGE TOLERANCE Note.4 : ±2.0%

LINE REGULATION : ±0.5%

LOAD REGULATION : ±0.5%

AUXILIARY DC OUTPUT : Nominal 15V(deviation 11.5~15.5V)@0.3A for BE-Type only

SETUP, RISE TIME Note.6 : 1600ms, 80ms/115VAC 500ms, 100ms/230VAC

HOLD UP TIME (Typ.) : 10ms/115VAC, 230VAC

INPUT :

VOLTAGE RANGE Note.5 : 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE : 47 ~ 63Hz

POWER FACTOR : PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section

TOTAL HARMONIC DISTORTION : THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)

EFFICIENCY (Typ.) : 90%

EFFICIENCY (Typ.)(forBEType only : 88%

AC CURRENT : 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC

INRUSH CURRENT(Typ.) : COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. No. of PSUs on 16A CIRCUIT BREAKER : 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C)

LEAKAGE CURRENT : <0.75mA / 277VAC

NO LOAD / STANDBY POWER CONSUMPTION : No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION :

OVER CURRENT : CURRENT 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed

SHORT CIRCUIT : CIRCUIT Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE : 54 ~ 62V Shut down output voltage, re-power on to recover

OVER TEMPERATURE : Shut down output voltage, re-power on to recover

ENVIRONMENT :

WORKING TEMP. : Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

MAX. CASE TEMP. : Tcase=+90℃

WORKING HUMIDITY : 20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY : -40 ~ +80℃, 10 ~ 95% RH

TEMP. COEFFICIENT : ±0.03%/℃ (0 ~ 60℃)

VIBRATION : 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC :

SAFETY STANDARDS : UL8750(type”HL”)(except for BE-type), CSA C22.2 No. 250.13-12; IEC/EN/AS/NZS 61347-1,IEC/EN/AS/NZS 61347-2-13 independent, EN62384,BIS IS15885(for 12/12B/12DA/24/24B/24DA/36A/42/42A/48A/54 only), EAC TP TC 004,GB19510.1,GB19510.14; IP65 or IP67; KC61347-1

DALI STANDARDS : Compliance to IEC62386-101,102,207 for DA-Type only

WITHSTAND VOLTAGE : I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC

ISOLATION RESISTANCE : I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION : Compliance toEN55015,EN61000-3-2 ClassC(@load≧60%);EN61000-3-3;GB17743,GB17625.1,EACTPTC020;KCKN15,KN61547

EMC IMMUNITY : Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547

OTHERS :

MTBF : 899.8K hrs min. Telcordia SR-332 (Bellcore) 313.66Khrs min. MIL-HDBK-217F (25℃)

DIMENSION : 219*63*35.5mm (L*W*H)

PACKING : 0.95Kg ; 16pcs/16.0kg/0.77CUFT
