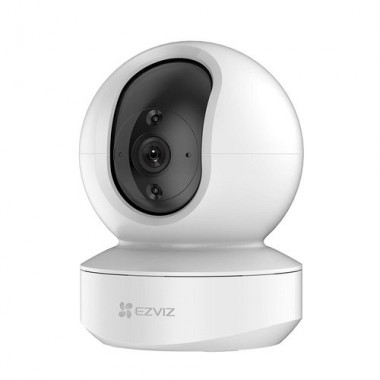

Ezviz TY1 Smart Wi-Fi Pan Tilt Camera

EZVIZ TY1 960/1080p Indoor WiFi Security Camera 360° Full Room Coverage Auto Motion Tracking Full Duplex Two-Way Audio Clear 33ft Night Vision Supports MicroSD Card up to 256GB (960/1080p HD) 2.4GHz WiFi





Model CS-TY1-B0-1G2WF





Image Sensor 1/3" Progressive Scan CMOS



Shutter Speed Self-adaptive shutter



Lens 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical



Lens Mount M12



Day & Night IR-cut filter with auto-switching



DNR 3D DNR



WDR Digital WDR





Video Compression H.264



Video Bit Rate Adaptive bit rate.





Max. Resolution 1920 × 1080



Frame Rate Max:15fps; Self-Adaptive during network transmission





Smart Alarm Motion detection



Wi-Fi Pairing AP pairing



Protocol EZVIZ Cloud proprietary protocol



Interface Protocol EZVIZ Cloud proprietary protocol





Storage MicroSD card slot (Max. 256GB)



Power Micro USB



Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)





Standard IEEE802.11b/g/n



Frequency Range 2.4 GHz ~ 2.4835 GHz



Channel Bandwidth Supports 20MHz



Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK



Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps



Operating Environment



Temperature -10°C to 45°C (14°F to 113 °F)



Humidity 95% or less (non-condensing)



General



Power Supply DC 5V/1A



Power Consumption 5W max



IR Range MAX. 10 meters (32.81 ft.)



Dimensions 88 x 88 x 118.7 mm (3.46 x 3.46 x 4.67 inch)



Packaging Dimensions 103 x 103 x 186 mm (4.06 x 4.06 x 7.32 inch)



Net Weight 259g (9.14oz)



In the box: TY1 Pan/Tilt Camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template ; Power Adapter ; Quick Start Guide
