Four-Wire Analog - DS-KIS204T

Feature Key

Analog Kit with picture storage function for villa or house, only one call button

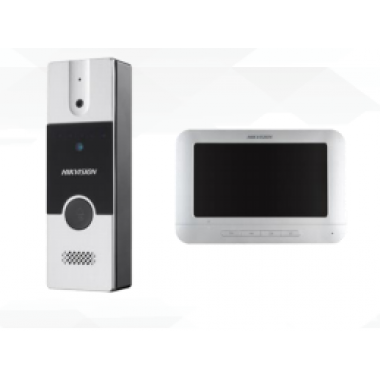

Kit including DS-KB2411T-IM and DS-KH2220-S, 5-meter 4-wire cable, and other accessories

European power supply adaptor included (please mark for other standards when you order)

Door station

Resolution : 1920 × 1080

Lens : 1/2.7" CMOS

Audio input : Built-in omnidirectional microphone

Audio output : Built-in loudspeaker

I/O output : 1 relay output

Four-wire : 1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power, supply, 1-ch grounding)

Power supply : 12 VDC

Power consumption : Max. 5W

Working temperature : -10° C to + 55° C (14° F to 131° F)

Working humidity : 10% to 90%

Dimensions : 128 mm × 42 mm × 24.8 mm

Indoor station :

Operation method : Physical button

Type : 7-inch colorful TFT LCD

Resolution : 800 × 480

Audio input : Built-in omnidirectional microphone

Audio output : Built-in loudspeaker

Audio quality : Noise suppression and echo cancellation

Power supply : 12 VDC

Power consumption : ≤5 W

Working temperature : -10° C to + 55° C (14° F to 131° F)

Working humidity : 10% to 90%

Dimensions (W × H × D) : 195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
