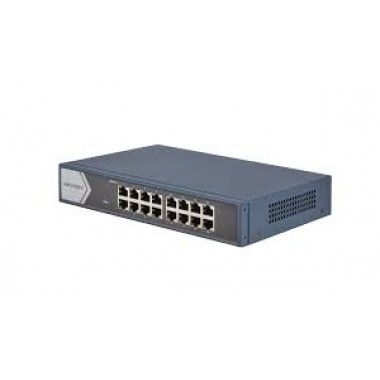

Gigabit Ethernet Switch - DS-3E0516-E(B)

DS-3E0516-E(B) switch is a layer 2 gigabit Ethernet switch, providing 16 1000M Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switch function. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices.

Network parameters :

Port number : 16 x 1000M Ethernet port

Port type : RJ45 port, Full duplex, MDI/MDI-X adaptive

Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Processing type : Store-and-forward switching

MAC address table : 8 K

Exchange capacity : 32 Gbps

Packet forwarding rate : 23.808 Mpps

Internal cache : 4.1 Mbits

Mechanical structure :

Shell : Metal material, fan-free design

Weight : 1.2 kg (2.6 lb)

Dimensions (L × H × D) : 257 mm × 44.5 mm ×175.8 mm (10.1” × 1.8” × 6.9”)

Environment :

Operating temperature : 0˚C to 40˚C (32˚F to 104˚F

Storage temperature : –40˚C to 85˚C (–40˚F to 185˚F)

Relative humidity : 5% to 95% (no condensation)

Power supply :

Power supply specification : 220 VAC，50/60 Hz，Max. 0.3 A
