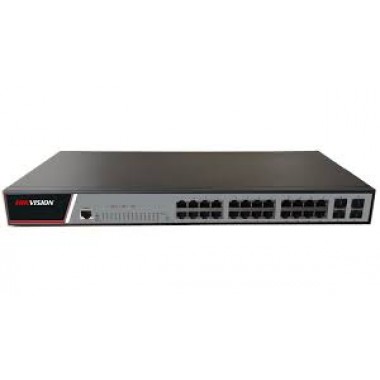

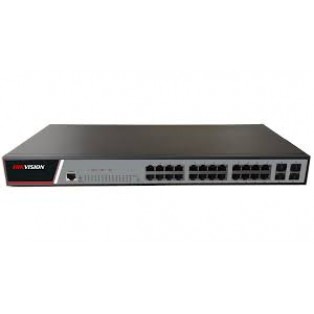

Gigabit Full Managed Switch - DS-3E2528

Key Features

DS-3E2528 supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers;

DS-3E2528 has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods;

DS-3E2528 supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;

DS-3E2528 supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy;

DS-3E2528 supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services;

DS-3E2528 provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services;

DS-3E2528 supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”;

Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions;

Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+;

DS-3E2528 supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions;

DS-3E2528 supports perfect ring detection mechanism which ensures the long-term stable running of network;

DS-3E2528 supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security;

DS-3E2528 supports many management modes such as the console port, Telnet, SSH;

DS-3E2528 supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient;

Port number24 x 10/100/1000Base-T ports, 4 1000Base-X SFP ports, 1 Console port

Switching capacity56Gbps

Packet forwarding rate42Mpps

MAC address table8K

Dimensions(L × H × D)440 mm × 45 mm × 230 mm

Consumption<15W

Power supplyAC：100V-240V，50Hz±10%

EnvironmentOperating temperature/humidity: 0℃-45℃，5%-95% non-condensing Storage temperature/humidity: -20℃-70℃；5%-95% non-condensing

MAC exchangeStatic configuration and dynamic MAC learning; MAC browsing and removal Configurable aging time of the MAC address; Limited number of learnable MAC addresses; MAC filtration

VLAN4K VLAN; GVRP; QinQ; Private VLAN

STP802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP) BPDU protection, root protection, and loopback protection

MulticastIGMP v1/v2/v3 IGMP snooping IGMP Fast Leave Multicast group strategy and quantity limitation

QoSFlow classification based on L2~4 protocols CAR flow limit 802.1P/DSCP priority re-labeling SP, WRR, and “SP+WRR” Congestion avoidance mechanisms like Tail-Drop and WRED Flow monitoring and flow shaping

SecurityL2/L3/L4 ACL flow identification and filtration DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc Broadcast/multicast/unknown unicast storm-control Port isolation Port security, and “IP+MAC+port” binding

ReliabilityStatic/LACP link aggregation EAPS and ERPS

ManagementConsole, Telnet, SSH2.0, Web SNMP v1/v2/v3 TFTP RMON
