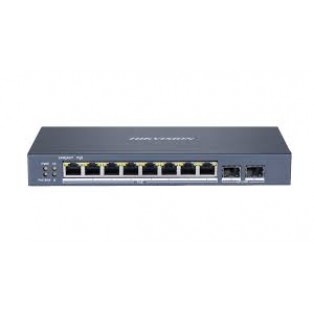

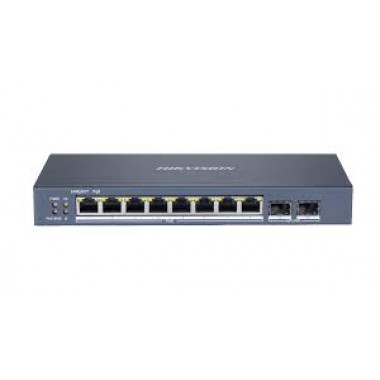

Gigabit Web-Managed PoE Switch - DS-3E1510P-E

DS-3E1510P-E switches are layer 2 PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of high-performance access. The switches support Web management, various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on to ensure the data is uploaded steadily.

Network parameters :

Port number : 8 × gigabit PoE ports, and 2 × gigabit fiber optical ports

Port type : RJ45 port, full duplex, MDI/MDI-X adaptive

Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z

Forwarding mode : Store-and-forward switching

Working mode : Standard mode (default); Extend mode

MAC address table : 8 K

Switching capacity : 20 Gbps

Packet forwarding rate : 14.88 Mpps

Internal cache : 4.1 Mbits

PoE power supply :

PoE standard : IEEE 802.3af, IEEE 802.3at

PoE power pin : Ethernet cables 1/2/3/6 provide power supply.

PoE port : Ports 1 to 8

Max. port power : 30 W

PoE power budget : 110 W

General :

Shell : Metal material, fan-free design

Net weight : 1.21 kg (2.67 lb)

Gross weight : 1.3 kg (2.87 lb)

Dimension (L × H × D) : 217.6 mm × 108.55 mm × 27.8 mm (8.57” × 4.27” × 1.09”)

Operating temperature : -10 °C to 55 °C (14 °F to 131 °F)

Storage temperature : -40 °C to 85 °C (-40 °F to 185 °F)

Operating humidity : 5% to 95% (no condensation)

Relative humidity : 5% to 95% (no condensation)

Power supply : 48 VDC, 2.5 A

Power source : 120 W

Max. power consumption : 120 W

Power consumption in idle : 7 W

Software function :

Device maintenance : Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters, import and export configuration, time sync

Port configuration : Support the configuration of port rate and slow control, and ports enabling.

Long range : Support up to 300 m transmission.

PoE watchdog : Ports 1 to 8: auto detect and restart the cameras that do not respond.

Port rate-limiting : Support rate-limiting for ingress and egress ports..

Storm control : Support the storm control of unknown unicast, multicast and broadcast.

Port mirroring : Support port mirroring function.

QoS : Support WRR and SP scheduling and port priority.

VLAN : Support 128 VLANs.

STP : Support STP and RSTP.

SNMP : Support SNMPv1 and SNMPv2c, the node information for system and interfaces acquisition.

PoE : Support IEEE 802.3at/af power supply.
