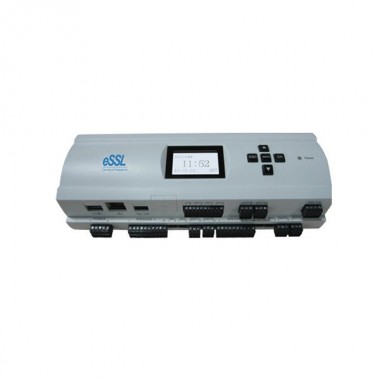

eSSL EC-10-EX-16

Model: eSSL EC-10-EX-16

​eSSL EC-10-EX-16 biometric fingerprint and RFID slave reader.

The eSSL EC-10 & EX-16 connect in a seamlessly to provide a hassle-free elevator controller system, which makes providing privileged access a breeze in any elevator set-up. The EC10 Elevator Control Panel can restrict access up to ten floors. The EX16 Floor Expansion Boards can restrict access up to an additional sixteen floors. Each EC10 panel can support up to three EX16 expansion boards. When combined, a total fifty eight (58) floors can be controlled with a single EC10 bundle. Note EC10 panels can be daisy-chained together to control as many floors as desired.

ELEVATOR CONTROLLER – EC-10:

• Floor Button Control Relays:
• Fingerprint Capacity: 3,000
• Proximity Card Capacity: 30,000
• Event Capacity: 1,00,000
• Power Supply: DC 12V 1Amp
• Communication to Computer: Ethernet, RS485
• Communication to EX16: RS485
• Number of supported EX16 Boards: 3

ELEVATOR CONTROLLER – EX-16:

• Floor Button Control Relays: 16
• Communication to EC10: RS485
• RS485 Address: Set by DIP Switch
• Power Supply: DC 12V 1Amp

FEATURES:

• Supports both RFID and Fingerprint Slave Readers
• Fail Safe Mode
• Real-time upload of user access privileges
• Real-time event monitoring
• User-defined floor access privilege
• Software: Bio-Security 3.0.1.0_R
• Database Type: PG SQL / MS SQL / Oracle

Technical Sheet: eSSL EC-10-EX-16
