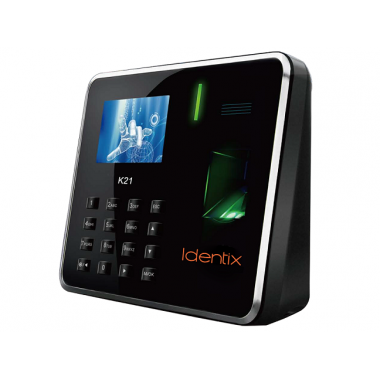

eSSL Innovative Biometric Fingerprint Time and Attendance Reader - K21

The eSSL Identix K21 gives you the complete package for Fingerprint Time & Attendance System. It comes with a 2.8”-inch Color TFT Screen. It features a fingerprint sensor with 500 DPI Optical Sensor.

This system gives you a dual mode of Access Control – either SSR Mode or Software Mode. This feature makes it more advanced than its predecessor the K20. It has a SSR Recorder and Automatic Status Switch along with Self Service Query. The device has a quick response rate of less than 1 second.

Make access control in your office, school, gym, clubhouse, etc easier than ever before, just by the touch of a finger!

Technical Specification

Storage Capacity:

• Fingerprint Templates : 500
• Transaction Storage : 50,000
• Card Capacity : NA
• Card Reader : NO

Biometric:

• Fingerprint Sensor : 500 DPI Optical Sensor
• FAR : <=0.0001%
• FRR : <=1%
• Identication speed : <=1 sec
• Algorithm Ver : 10

Audio/Visual:

• Display : 2.8” Color TFT
• Keypad : 4 x 4 Keypad
• LED Indicator : Green/Red
• Schedule Bell/Speaker : Mini Speaker

Communication:

• Communication : RS232, RS485, TCP/IP, USB
• Push data : NA
• Standard features : Schedule Bell,Self Service Query,SSR Recorder,. Automatic Switch,DST, T9 Input

Power & Environment:

• Power Supply : 5V DC, 1AMP
• Operating Temprature : 0oC to 45oC
• Operating Humidity : 20% -80%
• Dimension : 183 x 138 x 45

Access Control:

• Wiegand : NO
• Relay : NO
• Support Fire Alarm : NO
• Door Sensor : NO
• Anti Passback : NO
• Door Bell : NO

Exit Readers:

•  Support exit readers : NO

Optional:

• Battery : NO
• Card readers : NO
• Communication : NA
• Dual Mode : Either SSR Mode or Software Mode

Compatibility

Compatible Software & SDK:

• Smart office suite desktop
• Etime track lite desktop

Major Applications:

• Time & Attendance ,
• Canteen management, School attedance
• Production Management, Gym & clubs

​Techncial Sheet:  eSSL-K21

Live Demo and Installation of eSSL Identix K21
