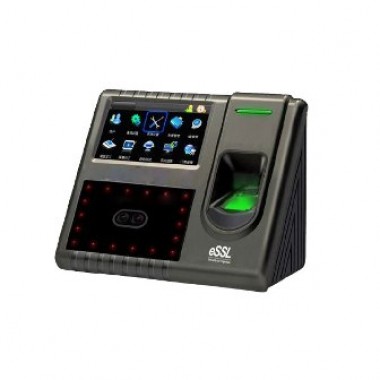

eSSL Multi Biometric Time And Attendance Access Control Systems - uFace602

The eSSL uFace 602 is a multi-biometric Identification Time & Attendance as well as Access Control Terminal. The multi-biometric device is a versatile machine that delivers promptly and efficiently at every instance. It has a face reader, fingerprint reader and optional card storage. It has various options hence delivering as per required. The device has a highly capable High-Resolution Infrared Camera which is state-of-the-art technology for face recognition devices. The eSSL is has a brilliant battery backup for times of power failure giving the user the edge in any circumstance. The device with its 1.0 GHz CPU is great at processing giving a lighting identification speed of less than 0.50 seconds. It has a 4.3”-inch TFT touch screen. It also contains a Keypad with 6 function key with 1 power button. The transaction storage capacity of 1,00,000 is also huge keeping in mind the face capacity.

SPECIFICATIONS:

• Face Capacity: 1,200 (3,000 Optional)(I:N)
• Fingerprint Templates: 2,000
• Card Storage: 10,000 (Optional)
• Transaction Storage: 1,00,000
• Card Reader: Yes
• CPU: 1.0 GHz
• Fingerprint Sensor: 500 DPI Optical Sensor
• FAR:<=0.0001% / FRR: <=1%
• Identification Speed: Less than equal to 0.50 second
• Algorithm Ver: 10.0
• Display: 4.3” TFT Touch Screen
• Keypad: 4 x 4 with 5 function keys
• LED Indicator: Green/Red
• Schedule Bell/Speaker: Mini Speaker
• Communication: TCP/IP, RS232/485, USB-Host
• Push Data: Yes
• Power Supply: DC 12V, 3A
• Operating temp: 0°C - 45°C
• Operating Humidity: 20% - 80%
• Dimension(mm): 194.1 x169.0 x111.0 (WxHxD)
• Wiegand: Output
• Relay: 12V relay for Lock EM Lock, Bolt Lock or Strike Lock
• Support Fire Alarm: No
• Door Sensor: Yes
• Anti-Pass back: No
• Door Bell: No
• Support Exit Readers: No
• Battery: 7.4V, 2,000 mAh Battery Backup

COMPATIBILITY:

• Compatible with Multi-Door controllers via Wiegand
• External Speakers output available (Optional)
• External Bulb output available (Optional)
• Support External Printer

COMPATIBILITY SOFTWARE & SDK:

• Smart Office Suite Desktop & Web
• E-time track lite Desktop & Web
• SDK for desktop applications
• Web based device Managers/ePush server using Push data. Helps developers & integrators
• Supports 3RD Party Payroll /HRMS/ERP & Other applications

​Techncial Sheet: eSSL-uFace602
