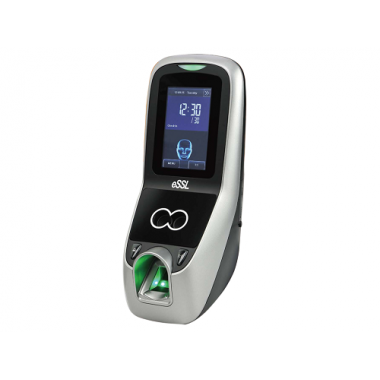

The eSSL Multibio 700, as the product name suggests is a multi-biometric identification time attendance & access control device. It’s an elegant looking device that will suit any space to complement the interiors. It gives the user options between fingerprint, face recognition & RFID card reader. The excellence of the device is the large capacity it provides for all. It has Wiegand for both 26 as well as 32-Bit. The sleek design makes it a great choice for those who are looking at capability & class.

SPECIFICATIONS:

• Face capacity: 2,000
• Fingerprint capacity: 2,000
• ID Card Capacity: 10,000
• Transaction Logs capacity: 100,000
• Card Reader: Yes
• Image Sensor: Special Stereo Dual Sensor
• FAR:<=0.0001% / FRR: <=1%
• Identification Speed: Less than equal to 1.00 second
• Algorithm Ver: 10.0
• Display: 3” TFT Touch Screen
• Keypad: 2 function keys
• Schedule Bell/Speaker: Mini Speaker
• Communication: TCP/IP, RS232/485, USB-Host
• Camera: High Resolution Infrared Camera
• Standard Features: ID Card, Automatic Status Switch, Self Service Query Work Code
• Power Supply: DC 12V, 1.5 Amps
• Operating temp: 0°C - 45°C
• Operating Humidity: 20% - 80%
• Dimension(mm): 195.0 x 100.0 x 275.0 (WxHxD)
• Wiegand: Both 26 & 32 Bit In and Output
• Relay: 12V
• Support Fire Alarm: Yes
• Door Sensor: Yes
• Anti-Pass back: No
• Door Bell: Yes
• Support Exit Reader: KR500, 101HE
• Battery: No / Card Readers: Yes
• Communication: No
• Printer: No
• COMPATIBILITY:
• 3RD Party Electric Lock
• Door Sensor
• Exit Button

COMPATIBILITY SOFTWARE & SDK:

• Smart Office Suite Desktop & Web
• E-time track lite Desktop & Web
• SDK for desktop applications
• Web based device Managers/ePush server using Push data. Helps developers & integrators
• Supports 3RD Party Payroll /HRMS/ERP & Other applications

Techncial Sheet: eSSL Multibio700

Live Demo and Installation of eSSL Multibio700
