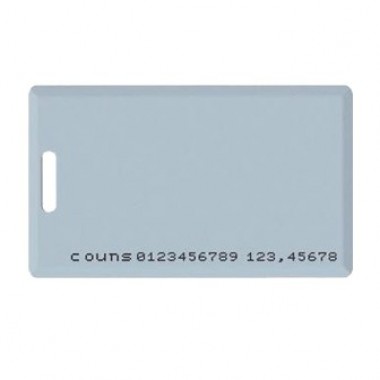

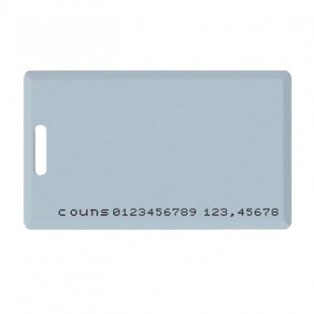

eSSL Proximity and Mifare Cards - THICK-CARD

Model: eSSL-THICK-CARD

The eSSL offers the Thin and Thick Proximity Card and Mifare card featured on125KHz and 13.56MHz respectively based on ISO Format proximity technology. Both cards are image-printable on both sides. The card is lightweight to carry at only 9 grams. It is used for applications such as access control system, time and attendance, Employee ID card, ticketing, visitor management, and etc. The thin and thick cards are constructed from the flexible polyvinyl chloride (PVC) laminate material.

PROXIMITY CARD – THICK CARD:

SPECIFICATIONS:

• Card Dimensions (mm): 54.00 x 00.82 x 85.00 (LxWxD)
• Card Construction: Thin, Flexible polyvinyl chloride (PVC) laminate
• Operating Temperature: 13°F to 158°F (-25°C to 70 °C)
• Working Frequency: 125 KHz
• Maximum Read Range: 2-6 cm
• Weight: 9 grams
• ISO Format: 125 KHz
• ISO Standard: ISO / IEC 14443

FEATURES:

• Industry Standard Generic 125 KHz (Thin Clam – Shell)
• Industry Standard Generic 125 KHz (Thin/ISO 0.8 mm)
• 13.56 MHz Mifare (Thin Only)
• HID 125 KHz

Technical Sheet: eSSL-THICK-CARD
