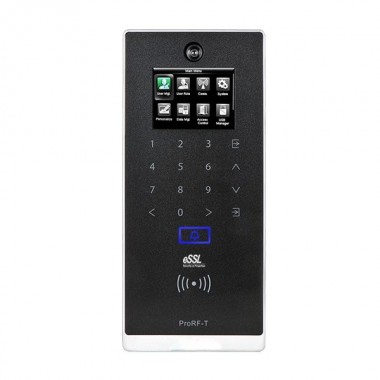

eSSL RFID Card Sensor Biometric Access Control Reader - PRORF-T

Model: eSSL PRORF-T

eSSL PRORF-T RFID Card sensor biometic access control card reader sensor.

The eSSL ProRF-T is a sleek looking fingerprint device that brings the best combination of great design and usability. The device is in a beautiful matte black finish. It has a multi-verification mode of card as well as password. The eSSL ProRF-T has a 2.4“-inch TFT Touch Screen and a touch keypad which complements the overall seamless design. The device has a host of features such as Wiegand Slave Reader, Bio-Security Software, Card Slave Reader (Optional). It churns out a maximum capacity of 50,000 cards and a transaction capacity of 1,00,000 cards. It keeps a record of User Photos as well as Event Photos of up to 3,000 and 7,000 respectively.

SPECIFICATIONS:

• Card Capacity: 50,000
• Transactions Capacity: 1,00,000
• User Photos: 3,000
• Event Photos: 7,000
• Communication: TCP/IP, RS485 (For Slave Reader), USB-Host, Wiegand Input / Output, Security Relay Box
• Hardware: 1.2GHz Dual Core CPU
• Memory: 128MB RAM
• ROM: 256MB Flash
• Display: 2.4”-inch TFT-LCD Touch Screen
• 125KHz EM Reader/ Mifare (Optional), Hi-Fi Voice & Indicator, Tamper Switch Alarm, Touch Keypad, 120° Wide Angle Camera
• Standard Functions: Access Levels / Groups / Holidays, DST / Bell Schedule, Duress Mode, Anti-Passback, Record Query, Custom Wallpaper & Screen Saver
• Special Functions: Multiple Verification Modes, Event Snapshot, User Photo (Optional)
• Access Control Interface: Lock Relay Output,
• Alarm Output / Auxiliary Input, Exit Button / Door Sensor, Doorbell Output
• Compatibility: Wiegand Slave Reader, RS485 Slave Reader, Bio Security Software
• Working Temperature: -10°C ~ 50°C
• Dimensions (mm): 195.5 x 87 x 35
• Power: 12V DC, 0.50 mAh

FEATURES:

• Modern Design & Interactive UI
• Simple Management Scalability
• Multiple Verification Modes: Card/Password
• Touch Keypad
• Built-In Camera Event Snapshot and User Photo

Technical Sheet: eSSL PRORF-T
