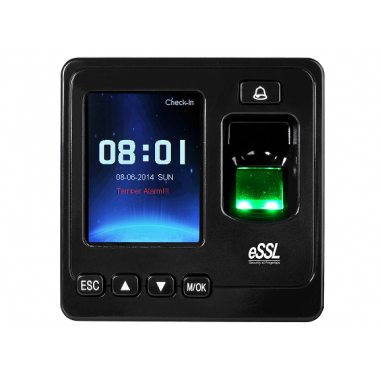

eSSL Standalone Network Fingerprint Access Control System - Identix SF100

The eSSL Identix SF100 has redefined the term miniature with its design and sheer size. For the given size, the machine does wonders in the world of biometric identification devices. It gives the user big value in a small package. It has been designed for those who want to put a compact device to administer their workplace efficiently.

The machine is devised to recognize 500 fingerprint templates and has a capacity to read 5,000 cards. It has a long list of features to floor you, a 2.8”-inch Color TFT display, Door Sensors, Alarm, Door Bell are a few.

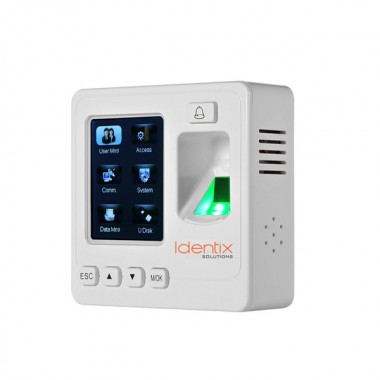

The SF100 is a very capable device at this size and is best suited for time and attendance, canteen management, school or staff attendance, product management & even gym & clubs. The SF100 is designed to impress and deliver. The eSSL SF100 also comes in two elegant colors – black and white.

Technical Specification

Storage Capacity:

• Fingerprint Templates : 500
• Transaction Storage : 80,000
• Card Capacity : 5000
• Card Reader : Yes

Biometric:

• Fingerprint Sensor : 500 DPI Optical Sensor
• FAR : <=0.0001%
• FRR : <=1%
• Identication speed  : <=1 sec
• Algorithm Ver : VX 10.0

Audio/Visual:

• Display : 2.8” Color TFT
• Keypad : 4 Function keys
• LED Indicator : Green/Red
• Schedule Bell/Speaker : Mini Speaker

Communication:

• Communication : USB-host , TCP/ IP, RS 485
• Push data : NA
• Standard features : Auxiliary Input

Power & Environment:

• Power Supply : 12 V DC, 1.50Amps
• Operating Temprature : 0oC to 45oC
• Operating Humidity : 20% -80%
• Dimension : 90 x 90 x 34mm

Access Control:

• Wiegand : In & Out
• Relay : 12V
• Support Fire Alarm : NO
• Door Sensor : Yes
• Anti Passback : NO
• Door Bell : Yes

Exit Readers:

• Support exit readers : KR500 , EM Locks , Door Sensors,Alarm ,Door Bell ,Exit Button

Optional:

• Battery : NO
• Card readers : NO
• Communication : NO
• Dual Mode : NO

Compatibility

Compatible Software & SDK:

• Smart office suite desktop
• Etime track lite desktop

Major Applications:

• Time & Attendance , Canteen management, School attedance
• Production Management, Gym & clubs

Techncial Sheet: eSSL Identix SF100

Live Demo and Installation of eSSL Identix SF100
