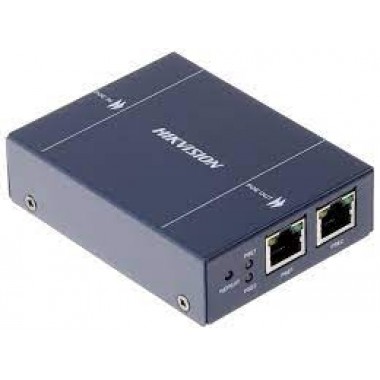

PoE Video Repeater - DS-1H34-0102P

Key Features :

Support 1-ch input and 1-ch output, and 1-ch input and 2-ch output PoE relay function.

Support EXTEND mode  of  PSE  (Power  Sourcing  Equipment)  output interface.  The  transmission distance  of  single-stage  network  can  be  extended  to  250 meters  when  the  EXTEND  mode  is enabled.

Standard Cat. 5e twisted pair. For 100 Mbps mode, the repeater supports 4-stage cascade and the max. transmission distance reaches 500 meters (terminal power consumption < 5W). For EXTEND mode, the max. transmission distance reaches 500 meters (terminal power consumption < 5W).

IEEE802.3at and IEEE802.3af are supported for PoE output.10/100BaseT(X) (RJ45 interface).

IEEE802.3, IEEE802.3u and IEEE802.3x network standards available.

Store-and-forward switching method.

The time delay of data exchange is shorter than 5 microseconds.

The working temperature range for wide temperature range models is within -30 ̊C to 70 ̊C.

Solid metal case of high strength. Features and Functions

Input : 1-ch 10/100BaseT(X) and IEEE 802.3at standard of PD connection.

Output : 2-ch 10/100BaseT(X) and IEEE 802.3af standard of PSE outputs.

MTBF (Mean Time Between Failure) : 100000 hours

Consumption : < 2W

Working Temperature : -30 ºC to +70 ºC (-22 ºF to +158 ºF)

Working Humidity : 10% to 90%

Dimensions (W×H×D) : 71.6 × 26.1 × 95.5 mm (2.8 × 1.0 × 3.8 inch)

Weight : 0.3 Kg (0.7 lb)

ESD (Electro-Static Discharge) : Contact discharge: ±7 KVAir discharge: ±9 KV

Surge : Power port: Line-to-ground: ±2 KV; Line-to-line: 1 KVNetwork port: Line-to-ground: ±4 KV

EFT (Electrical Fast Transient Burst) : Network port: ±2 KV
