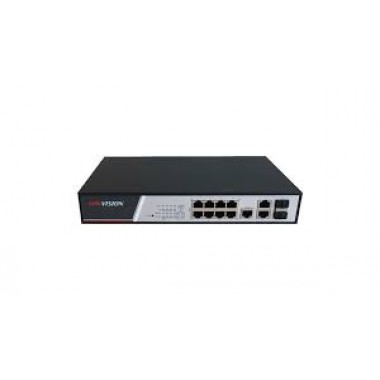

Series POE Switches - DS-3E2310P

Key Features

DS-3E23XXP Series supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers;

DS-3E23XXP Series has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods;

DS-3E23XXP Series supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;

DS-3E23XXP Series supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy;

DS-3E23XXP Series supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external power supply, that is, 24-port AF full-load power supply.

DS DS-3E23XXP Series supports the configuration of Base-T port priority when the power is inadequate.

DS-3E23XXP Series supports POE port and up to 4KV power thunder-proof.

DS-3E23XXP Series supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services;

DS-3E23XXP Series provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services;

DS-3E23XXP Series supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”; Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP

Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions;

Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+;

DS-3E23XXP Series supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions;

DS-3E23XXP Series supports perfect ring detection mechanism which ensures the long-term stable running of network;

DS-3E23XXP Series supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security;

DS-3E23XXP Series many management modes such as the console port, Telnet, SSH;

DS-3E23XXP Series supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient;

Backplane : 10Gbps

Forwarding rate : 5.6Mpps

MAC : 8K

Ports : 8 100M Base-T ports+2 gigabit combo ports

Dimensions(W×D×H)(mm) : 280*179*45

Consumption : <15W

POE/POE+ : Support

POE power consumption : 140W(POE 125W)

Power supply : AC：100V-240V，50Hz±10%

Environment : Operating temperature/humidity: 0℃-50℃，10%-90% non-condensing Storage temperature/humidity: -20℃-70℃；5%-95% non-condensing

MAC exchange : Static configuration and dynamic MAC learning; MAC browsing and removal Configurable aging time of the MAC address; Limited number of learnable MAC addresses; MAC filtration

VLAN : 4K VLAN; GVRP; QinQ; Private VLAN

STP : 802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP) BPDU protection, root protection, and loopback protection

Multicast : IGMP v1/v2/v3 IGMP snooping IGMP Fast Leave Multicast group strategy and quantity limitation Multicast flow copying over VLANs

QoS : Flow classification based on L2~4 protocols CAR flow limit 802.1P/DSCP priority re-labeling SP, WRR, and “SP+WRR” Congestion avoidance mechanisms like Tail-Drop and WRED Flow monitoring and flow shaping

Security : L2/L3/L4 ACL flow identification and filtration DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc Broadcast/multicast/unknown unicast storm-control Port isolation Port security, and “IP+MAC+port” binding

Reliability : Static/LACP link aggregation EAPS and ERPS

Management : Console, Telnet, SSH2.0, Web SNMP v1/v2/v3 TFTP RMON
