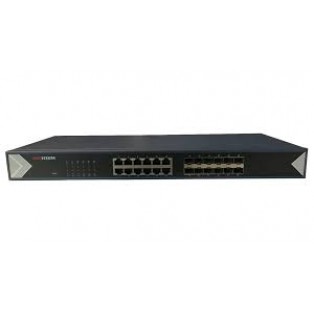

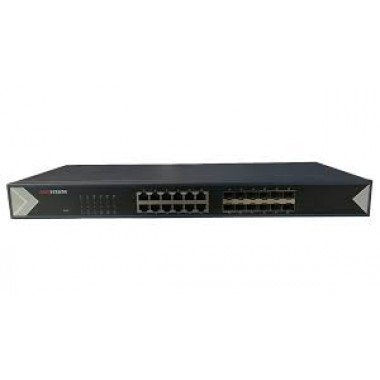

Switch - DS-3E0524TF

The Hikvision DS-3E0524TF Series Unmanaged Switch is layer 2 network switches, providing 12 Gigabit Ethernet electrical ports and 12 Gigabit SFP fiber optical port. It is reliable, easy to install and maintain, and equipped with rapid switch function. It has multiple access ports, and is applicable for access or aggregation and upload of small-scale LAN devices. It applies to center area and can access to camera and NVR, in charge of small-scale core data exchange.

Network parameters :

Port number : 12 Gigabit Ethernet electrical ports and 12 Gigabit SFP fiber optical port

Port type : Electrical ports: RJ45, Full/half duplex, MDI/MDI-X self-adptive Fiber optical port: SFP packaging

Standard : IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

Processing type : Store-and-forward switching

Priority queue : 8

Mac address table : 16 K

Switching bandwidth : 48 Gbps

Packet forwarding rate : 35.7 Mpps

Internal cache : 12 Mbit

Mechanical structure :

Shell : Metal material

Weight : 2.5 kg

Dimensions (L × H × D) : 440 × 44.5 × 186.5 mm (17.3 × 1.8 × 7.3 inch)

Environment :

Operating temperature : -5 ˚C to +50 ˚C (+23 ˚F to +122 ˚F)

Storage temperature : -40 ˚C to +85 ˚C (-40 ˚F to +185 ˚F)

Humidity : 5% to 95% (no condensation)

Power supply :

Power supply : 220 VAC

Consumption : ≤30 W

Safety and reliability :

ElectroSTatic Discharge (ESD) : Contact discharge：±7 KV Air discharge：±9 KV

Surge immunity (Surge) : Power port：line-ground ±2 KV，line-line 1 KV Network port：line-ground ±2 KV

Electrical fast transient (EFT) : Power port：±2 KV Network port：±1 KV
