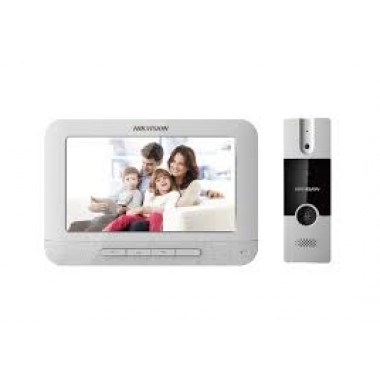

Video Door Phone - DS-KIS202

Key Features

Door Station :

Self-adaptive IR supplement

One-touch calling

Pinhole camera with 720 x 576 @ 25 fps

Unlock controlling

Indoor Station :

Hands-free video intercom communication

Supports monitoring the door station and the external analog camera

Remote unlocking

Convenient installation and easy operation

Door Station - Video Parameters :

Camera : 1/4" CMOS

Resolution : 720 × 576

Video frame rate : PAL: 25 fps

Door Station - Audio parameters :

Audio input : Built-in Omnidirectional Microphone

Audio output : Built-in Loudspeaker

Audio quality : Noise Suppression and Echo Cancellation

Door Station - Light Supplement :

Light supplement mode : Photosensitive IR Supplement, IR Range: 2 Meters

Door Station - Device interfaces :

Four-wire interface : 1 Four-Wire Interface (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding)

IO output : 1 Relay Output

Door Station – General :

Material : Aluminum Alloy

Power consumption : Max. 3W

Working temperature : -30° C to +60° C (-22° F to 140° F)

Working humidity : 10% to 90%

Dimension (L x W x H) : 128 mm × 42 mm × 24.8 mm (5.0" × 1.7" × 0.9")

Indoor Station - Display parameters :

Display screen : 7-Inch Colorful TFT LCD

Display resolution : 800 × 480

Operation method : Physical Button

Indoor Station -Audio parameters :

Audio input : Built-in Omnidirectional Microphone

Audio output : Built-in Loudspeaker

Audio quality : Noise Suppression and Echo Cancellation

Indoor Station - Device interfaces :

Four-wire interface : 4 Four-Wire Interfaces, 1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding

Indoor Station – General :

Power supply : 12 VDC

Power consumption : ≤5 W

Working temperature : -10° C to + 55° C (14° F to 131° F)

Working humidity : 10% to 90%

Dimension (L x W x H) : 195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
