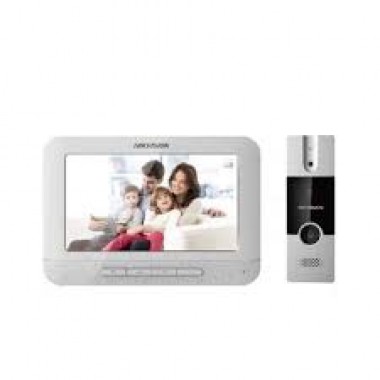

Video Door Phone - DS-KIS204

Key Features

Door Station :

Self-adaptive IR supplement

One-touch calling

Pinhole camera with 720 x 576 @ 25 fps

Unlock controlling

Indoor Station :

Hands-free video intercom communication

Supports monitoring the door station and the external analog camera

Supports image capture (Max. 200) and overwrite when exceed 200

Supports captured image playback

Remote unlocking

Door Station - Video Parameters :

Camera : 1/4" CMOS

Resolution : 720 × 576

Video frame rate : PAL: 25 fps

Door Station - Audio parameters :

Audio input : Built-in Omnidirectional Microphone

Audio output : Built-in Loudspeaker

Audio quality : Noise Suppression and Echo Cancellation

Door Station - Light Supplement :

Light supplement mode : Photosensitive IR Supplement, IR Range: 2 Meters

Door Station - Device interfaces :

Four-wire interface : 1 Four-Wire Interface (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding)

IO output : 1 Relay Output

Door Station – General :

Material : Aluminum Alloy

Power consumption : Max. 3W

Working temperature : -30° C to +60° C (-22° F to 140° F)

Working humidity : 10% to 90%

Dimension (L x W x H) : 128 mm × 42 mm × 24.8 mm (5.0" × 1.7" × 0.9")

Indoor Station - Display parameters :

Display screen : 7-Inch Colorful TFT LCD

Display resolution : 800 × 480

Operation method : Physical Button

Indoor Station - Audio parameters :

Audio input : Built-in Omnidirectional Microphone

Audio output : Built-in Loudspeaker

Audio quality : Noise Suppression and Echo Cancellation

Indoor Station - Device interfaces :

Four-wire interface : 4 Four-Wire Interfaces, 1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding

Indoor Station – General :

Power supply : 12 VDC

Power consumption : ≤5 W

Working temperature : -10° C to + 55° C (14° F to 131° F)

Working humidity : 10% to 90%

Dimension (L x W x H) : 195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
