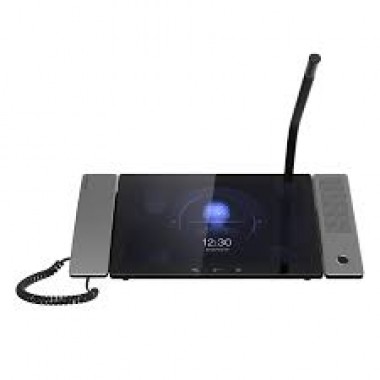

Video Intercom Android Main Station - DS-KM9503

Key Feature :

10.1-inch IPS touch screen with resolution: 1280 × 800

Up to 128 network cameras can be added to the device

Built-in SIP private server, up to 10000 video intercom devices can be added

Supports more than 2 speakers and microphones : Connects to external earphone (3.5mm), external goose neck microphone

Displays operation pages via HDMI

Power supply: standard PoE & 12 VDC

Video intercom and access control functions

System parameters :

Operating system : Android 7.1

ROM : 8 GB

RAM : 2 GB

CPU : Embedded processor

Display parameters

Screen size : 10.1-inch

Operation method : Capacitive touch screen

Type : IPS

Resolution : 1280 × 800

Video parameters :

Supplement light : /

Video compression standard : H.264

Lens : 3P IR Camera

FOV : Horizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2°

WDR : /

Resolution : 2 MP

Audio parameters :

Audio input : Built-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm)

Audio compression standard : G.711U, G.711A

Audio output : Built-in loudspeaker, external speaker, external voice box or earphone (3.5 mm)

Audio compression bitrate : 64 Kbps

Audio quality : Noise suppression and echo cancellation

Volume adjustment : Adjustable via software

Capacity :

Linked network camera capacity : 128

SIP access : 10000

Network parameters :

Communication protocol : TCP/IP, SIP, RTSP

Wired network : 2 10/100/1000 M self-adaptive Ethernet

Wi-Fi : /

3G/4G : /

Zigbee : /

Device interfaces :

Alarm input : 2

Network interface : 2

TAMPER : 0

RS-485 : 1

USB : 3

SD card : Max to 128 G

Lock control : 2 Relay output

General :

Button : 3 touch buttons

Installation : Table mounting & Wall mounting

Indicator : 3

Weight : Without package: 1.285 kg With package: 2.305 kg

Protective level : /

Working temperature : -10 °C to 50 °C( 14 °F to 122 °F)

Working humidity : 10% to 90%

Dimensions : 292 mm × 166 mm × 31 mm (11.5" × 6.5" × 1.2")

Battery : /

Power supply : Standard PoE (LAN1) 12 VDC

Application environment : Indoor

Power consumption : ≤ 12 W
