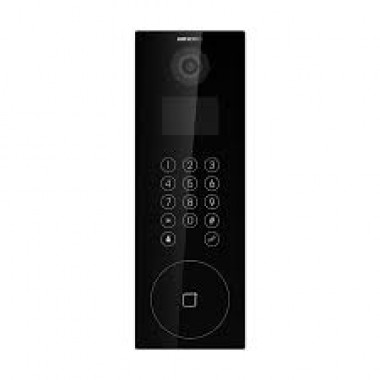

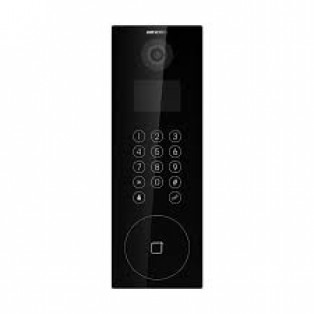

Video Intercom Door Station with 3.5-inch Screen- DS-KD8103-E6

2MP HD camera with high quality image

120° wide angle of view

3.5-inch colorful LCD screen with 480 × 320 resolution

Unlocks by cards and pin-codes

Supports cofiguration via Web remotely

System parameters :

Operation system : Embedded Linux operation system

Flash : 4 GB

RAM : 512 MB

CPU : Embedded processor

Display parameters :

Size : 3.5-inch

Operation method : Display screen, physical buttons

Type : Colorful LCD

Resolution : 480 × 320

Video parameters :

Video compression standard : H.264

Supplement light : Low illumination, IR supplement lights

Lens : 2 MP HD camera

FOV : Horizontal: 72 ° , Vertical: 119 ° , Diagonal: 132°

WDR : Support

Pixel : Main stream: 1920×1080p ,720p Sub stream: 640×480

Audio parameters :

Audio input : Built-in omnidirectional microphone

Audio compression standard : G.711 U, G.711 A

Audio output : Built-in loudspeaker

Audio compression bitrate : 64 Kbps

Audio quality : Noise suppression and echo cancellation

Volume adjustment : Adjustable

Capacity :

Fingerprint capacity : /

User capacity : 10000

Face capacity : /

Linked indoor station : 500

Event capacity : /

Network parameters :

Communication protocol : TCP/IP, RTSP

Wired network : Support

Wi-Fi/

Bluetooth/

3G/4G/

Device interfaces :

Alarm input : 6

TAMPER : 1

Network interface : 1 10/100/1000 Mbps self-adaptive, RJ45 analog interface

Exit button : 2

RS-485 : 2

USB : 0

Wiegand : 1

TF card : /

Alarm output : 2

Lock control : 2

Door contact input : 2

Power interface : 1

General :

Button : /

Installation : Flush mounting

Indicator : /

Weight : Without package: 1.05 kg With package: 2.166 kg

Protective level : IP 65

Power supply method : 12 VDC

Working temperature : -40 ° C to +55 ° C (-40 ° F to +135 °F)

Working humidity : 10% to 95%

Dimensions : 418 mm × 145 mm × 61 mm (16.46" × 5.71" × 2.40")

Battery : /

Power supply : ≤ 10 W

Application environment : Outdoor
