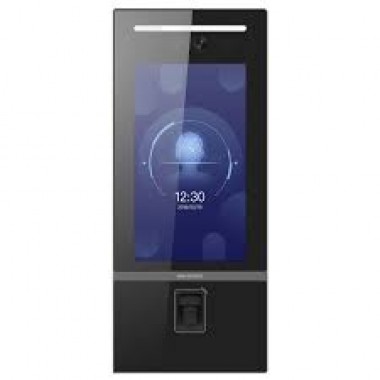

Video Intercom Face Recognition Door Station DS-KD9613-FE6

CE-EMC	a.      EN 55032:2015 b.      EN 61000-3-2:2014 c.      EN 61000-3-3:2013 d.      EN 50130-4:2011 +A1:2014
CE-LVD	EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
CB	IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
FCC-SDOC	47 CFR Part 15, Subpart B
C- TICK(EMC)	AS/NZS CISPR 32:2015
UL	UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07, Information Technology Equipment – Safety – Part 1: General Requirements
ROHS	2011/65/EU
REACH	Regulation (EC) No 1907/2006
WEEE	2012/19/EU

System parameters :

Operation system : Embedded Linux operation system

Operation method : Capacitive touch screen

Display parameters :

Display screen : 10-inch colorful LCD

Display resolution : 600 × 1024

Video Parameters :

Camera : 2 × 2 MP HD IR camera

Night vision : Low illumination, IR supplement lights

WDR : True WDR

Field of view : Horizontal: 108° , Vertical: 59°, Diagonal: 129°

Video Compression Standard : H.264

Stream : Main stream: 1080p@30fps,720p@30fps Sub stream: D1

Resolution : Main stream : 1920 × 1080p, 720p Sub stream : 704 × 576p

Video frame rate : 50 Hz, 60 Hz

Audio parameters :

Audio input : Built-in omnidirectional microphone

Audio output : Built-in loudspeaker

Audio intercom : Two-way audio

Audio compression standard : G.711 U

Audio compression Rate : 64 Kbps

Audio quality : Noise suppression and echo cancellation

Network parameters :

Network interface : 10/100/1000 Mbps self-adaptive Ethernet

Access control parameters :

Card type : Mifare card, 13.56 MHz

Card capacity : 10000

Face capacity : 3000

Fingerprint module : Optical fingerprint module, Max. 3000 fingerprints

Relay : 2

Interfaces :

RS-485 : 1

USB interface : 1

I/O input : 3

I/O output : 2

Debugging port : 1

Network interface : 2

Alarm parameters

TAMPER switch : 1

General :

Protective level : IP 65

Power supply : 12 VDC, 2A to 3A

Power consumption : ≤ 18 W

Working temperature : -30 °C to +60 °C (-22 °F to +140 °F)

Working humidity : 10% to 90%

Installation : Flush mounting
