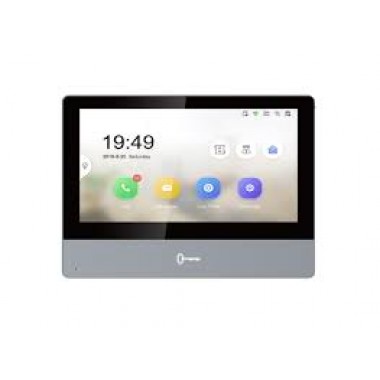

Video Intercom Indoor Station - DS-KH8350-WTE1

Key Feature :

Premium tempered glass.

Aerospace-grade aluminum.

New UI V2.0: User friendly design.

7-inch colorful IPS capacitive touch screen with resolution 1024 × 600.

8.6 mm Ultra-slim design.

Reddot award 2017 winner.

Standard PoE.

Support capture while video calling.

Remote unlocking via the client software or the mobile client.

Views live videos of door station and external cameras.

System :

Memory : 128 MB

Flash : 32 MB

Operation system : Embedded Linux operation system

Display :

Display screen : 7-inch colorful IPS LCD

Display resolution : 1024 × 600

Operation method : Capacitive touch screen, physical button

Audio :

Audio input : Built-in omnidirectional microphone

Audio output : Built-in loudspeaker

Audio compression standard : G.711 U

Audio compression rate : 64 Kbps

Audio quality : Noise suppression and echo cancellation

Network :

Wired network : 10/100 Mbps self-adaptive network

Wireless network : Wi-Fi 802.11b/g/n

Network protocol : TCP/IP、SIP、RTSP

Network interface : 1 RJ-45 10/100 Mbps self-adaptive

Alarm input : 8-ch alarm inputs

I/O output : 2

TF card : Max to 32G, SD 2.0 or lower version

RS-485 : Supported

General :

Power supply : IEEE802.3af, standard PoE, 12 VDC/1 A

Power supply via detector : 12 V, 200 mA

Power consumption : ≤ 7 W

Working temperature : -10 °C to 50°C (14 °F to 122 °F)

Working humidity : 10% to 90%

Dimensions (W × H × D) : 180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")

Mounting : Surface mounting

Certification : FCC, IC, CE, C-TICK, ROHS, REACH, WEEE, UL, CB, RCM
