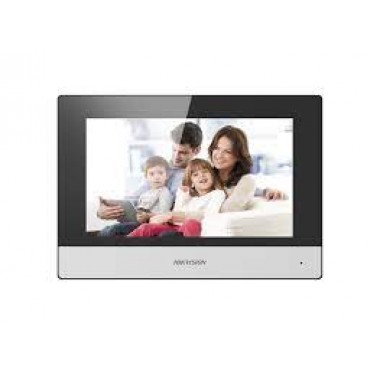

Video Intercom Indoor Station with 7-Inch Touch Screen - DS-KH6320-WTE1

UI V2.0: User friendly design

7-inch colorful touch screen with resolution 1024 × 600

Standard PoE

Stores messages and captured pictures in the TF card

Remote unlocking via the client software or the mobile client

Views live videos of door stations and linked cameras

Supports wireless network

System :

Memory : 128 MB

Flash : 32 MB

Operation system : Embedded Linux operation system

Display :

Display screen : 7-inch colorful TFT LCD

Display resolution : 1024 × 600

Operation method : Capacitive touch screen

Audio :

Audio input : Built-in omnidirectional microphone

Audio output : Built-in loudspeaker

Audio compression standard : G.711 U

Audio compression rate : 64 Kbps

Audio quality : Noise suppression and echo cancellation

Network :

Wired network : 10/100 Mbps self-adaptive network

Wireless network : Wi-Fi 802.11b/g/n

Network protocol : TCP/IP、SIP、RTSP

Network interface : 1 RJ-45 10/100 Mbps self-adaptive

Alarm input : 8-ch alarm inputs

Relay output : 2

TF card : Max to 32 G, SD 2.0 or lower version

RS-485 : 1

General :

Power supply : IEEE802.3af, standard PoE 12 VDC/1 A

Power consumption : ≤ 6 W

Working temperature : -10 °C to 55 °C (14 °F to 131 °F)

Working humidity : 10% to 90%

Dimensions (W × H × D) : 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
