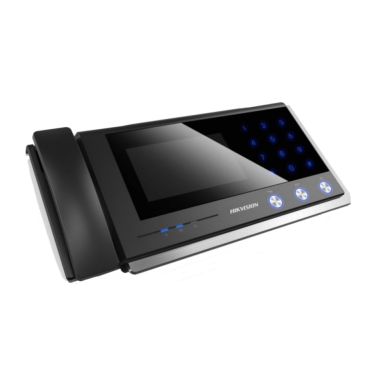

Video Intercom Master Station - DS-KM8301

Key Features :

Glass panel and aluminum-alloy bracket

Supports video intercom

Supports live view of door stations and IP camera

Noise suppression and echo cancellation

Alarm processing function

Supports remote unlocking door function

Supports hands-free mode

Supports video intercom between master stations

(Optional) Suitable for wall mounting

System parameters :

Processor : High-Performance Embedded SOC Processor

Operation system : Embedded Linux Operation System

Video parameters :

Camera : CMOS 0.3 MP

Video compression standard : H.264

Resolution : 1280 x 720, 704 x 576

Video frame rate : 25 fps, 12.5 fps

Display parameters :

Display screen : 7-Inch Colorful TFT LCD

Display resolution : 1024 x 600

Operation method : Capacitive Touch Screen, Touch Key, Physical Button

Operation interface : Flattened UI Operation Interface

Audio parameters :

Audio input : Built-in Omnidirectional Microphone + External Handset

Audio output : Built-in Loudspeaker + External Handset

Audio compression standard : G.711 U

Audio compression rate : 64 Kbps

Audio quality : Noise Suppression and Echo Cancellation

Network parameters :

Ethernet : 10/100/1000 Mbps Self-Adaptive Ethernet

Network protocol : TCP/IP, RTSP

Device interfaces :

Network interface : 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface

RS-485 : 2 RS-485 Half-Duplex Port

USB : 1 USB Interface for Inserting U-Disk

I/O input : 4 On-Off Input

I/O output : 2 On-Off Output, 2 Relay Output

General :

Material : Plastic

Power supply : 12 VDC

Power consumption : ≤10 W

Working temperature : -10° C to + 55° C (14° F to 131° F)

Working humidity : 10% to 90%

Dimensions (L x W x H) : 436 mm × 215 mm × 67 mm (17.2" ×8.5" × 2.6")

Certification : FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
