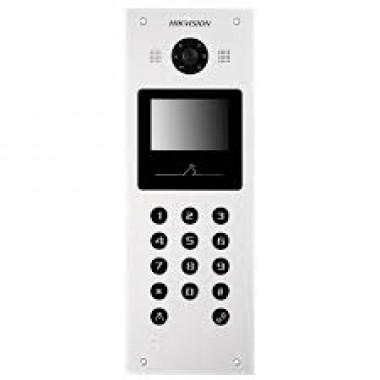

Video Intercom Metal Door Station - DS-KD3002-VM

Basic Functions :

Video intercom function

Access control function

Issues cards via door station, up to Max. 2500 cards, via outer door station, up to 50000 cards (This function will be invalid if the card has been issued via the client.)

Card readers supported

Self-adaptive visible light supplement

Video/Audio Functions :

HD video surveillance with high performance CMOS

Noise suppression and echo cancellation

H.264 video compression

Low illumination

Remote Control :

Remote unlocking via the client or the app

Remotely answering the call via the client or the app

Alarm Functions :

Tampering alarm and door magnetic alarm supported

Auto-uploads alarm messages to master station or the client once the duress code is entered to open the door

Additional Features :

Message notification function

Auto-uploads captured pictures to FTP or the client while unlocking the door

System parameters :

Processor : High-Performance Embedded SOC Processor

Operation system : Embedded Linux Operation System

Video parameters :

Camera : CMOS Low Illumination 1.3 MP HD Colorful Camera

Video compression standard : H.264

Resolution : 1280 × 720

Video frame rate : PAL: 25 fps, NTSC: 30 fps

Display parameters :

Display screen : 3.5-Inch Colorful TFT LCD

Display resolution : 480 × 320

Operation method : Physical Touch Keypad

Operation interface : LCD Display, Easy Menu

Audio parameters :

Audio input : Built-in Omnidirectional Microphone

Audio output : Built-in Loudspeaker

Audio compression standard : G.711 U

Audio compression rate : 64 Kbps

Audio quality : Noise Suppression and Echo Cancellation

Access control parameters :

Internal card reader : Built-in IC Card Reader

External card reader : Wiegand 26, Wiegand 34, or RS-485 IC Reader

Door magnetic detection : Detects Door Magnetic Status

Light supplement :

Light supplement mode : Visible Light Supplement

Network parameters :

Ethernet : 10/100/1000 Mbps Self-Adaptive Ethernet

Network protocol : TCP/IP, RTSP

Alarm parameters :

Alarm input : Door Magnetic Alarm, Tampering Alarm

Device interfaces :

Network interface : 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface

RS-485 : 1 RS-485 Half-Duplex Port

I/O input : 4

I/O output : 4

Wiegand : 1 Wiegand Port for Accessing Wiegand IC Card Reader

USB : 1 USB 2.0, Supporting U-Disk

General :

Material : Aluminum Alloy

Power supply : 12 VDC

Power consumption : ≤15 W

Working temperature : -40° C to +60° C (-40° F to 140° F)

Working humidity : 10% to 90%

IP protection level : IP65

Dimensions (L × W × H) : 357 mm × 124 mm × 55 mm (14.1" × 4.9" × 2.2")

Certification : FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
