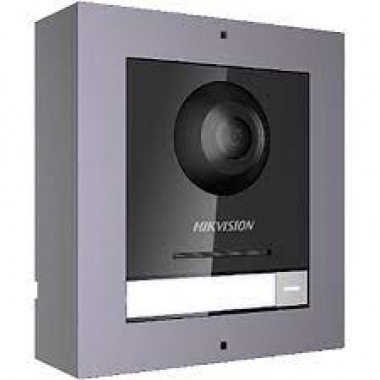

Video Intercom Module Door Station - DS-KD8003-IME1

2 MP HD video intercom function

Access control function

Noise suppression and echo cancellation

H.264 video compression

Low illumination

Tampering alarm

Fisheye camera with IR supplement light

Supports sub-modules' access (max. 8)

Nametag customization

Easy to and extend

System parameters :

Processor : Embedded MCU Processor

Operation system : Embedded Linux operation system

Operation method : Physical button

Video parameters :

Video compression standard : H.264

ResolutionMain Stream: 1920 × 1080 Sub Stream: 720 × 480

BLC : Supported

DNR : Supported

WDR : Supported

Anti-flicker : 50 Hz, 60 Hz

Field of view : Horizontal : 180° Vertical : 96°

Audio parameters :

Audio input : Built-in omnidirectional microphone

Audio output : Built-in omnidirectional (more than 85 dB within 20 cm)

Audio compression standard : G.711 U

Audio compression rate : 64 Kbps

Audio quality : Noise suppression and echo cancellation

Light supplement :

Light supplement mode : IR supplement

Network parameters :

Ethernet : 10/100 Mbps self-adaptive Ethernet

Network protocol : TCP/IP, RTSP

Alarm parameters :

Tampering alarm : 1

Interfaces :

Module-connecting : 1

I/O input : 4

Debug : 1

Relay : 2 (30 V, 1 A)

General :

Physical button : 1

Power supply : 12 VDC/PoE ( IEEE 802.3af)

Power consumption : ≤10 W

Working temperature : - 40 °C to 60 °C (- 40 °F to 140 °F)

Working humidity : 10% to 95%

IP protection level : IP65

Installation : Flush Mounting

Dimensions (W × H × D) : 124 mm × 134 mm × 57.88 mm (4.88" × 5.28" × 2.28")
